M7686-05

Active

Harwin Inc.

JUMPER (BUSBAR), JUMPER SOCKET, M20 CONNECTORS, 2, 2.54 MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

JUMPER (BUSBAR), JUMPER SOCKET, M20 CONNECTORS, 2, 2.54 MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M7686-05

Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.13 µm
Contact Finish Thickness	5.11 µin
Current Rating (Amps)	3 A
Gender	Female Sockets
Height [z]	10 mm
Height [z]	0.394 in
Housing Material	Polyester
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Closed Top, Grip
Voltage Rating	250 VDC

Part	Contact Finish Thickness	Contact Finish Thickness	Type	Voltage Rating	Material Flammability Rating	Housing Material	Pitch [x]	Pitch [x]	Gender	Current Rating (Amps)	Color	Height [z]	Height [z]	Contact Finish	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Harwin Inc. M7686-05	0.13 µm	5.11 µin	Closed Top Grip	250 VDC	UL94 V-0	Polyester	2.54 mm	0.1 in	Female Sockets	3 A	Black	10 mm	0.394 in	Gold	1 x 2	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

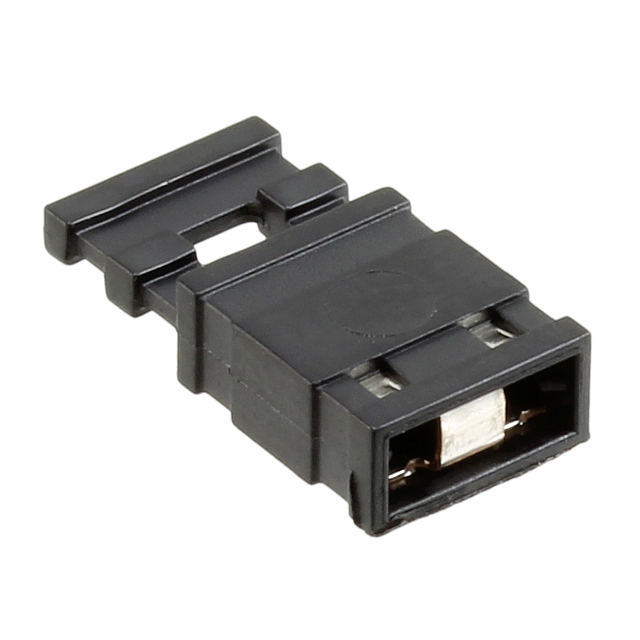

2 (1 x 2) Position Shunt Connector Black Closed Top, Grip 0.100" (2.54mm) Gold
