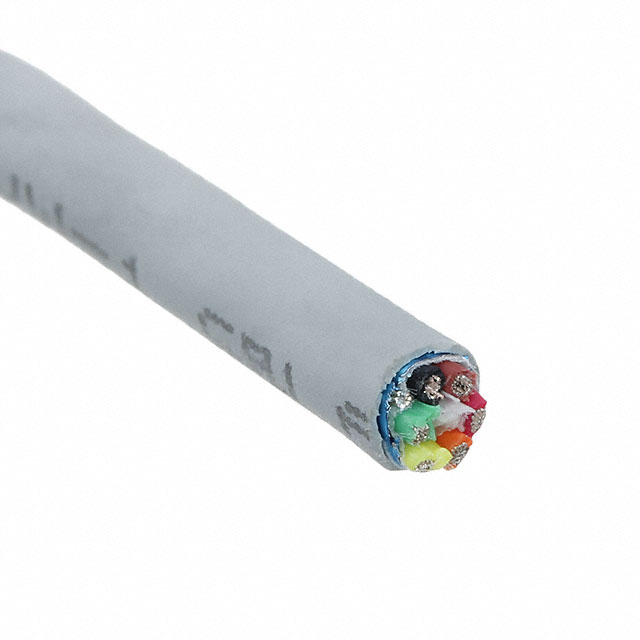

1216C SL005
ActiveALPHA WIRE
CABLE 6CON 24AWG SLATE SHLD 100'
Deep-Dive with AI
Search across all available documentation for this part.
1216C SL005
ActiveALPHA WIRE
CABLE 6CON 24AWG SLATE SHLD 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1216C SL005 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.11 mm |
| Jacket (Insulation) Diameter [diameter] | 0.201 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 6 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 273.42 | |
| 3 | $ 253.32 | |||
| 5 | $ 247.77 | |||
Description
General part information
1216C Series
6 Conductor Multi-Conductor Cable Slate 24 AWG Foil 100.0' (30.5m)
