28536.4
ActiveConta-Clip, Inc.

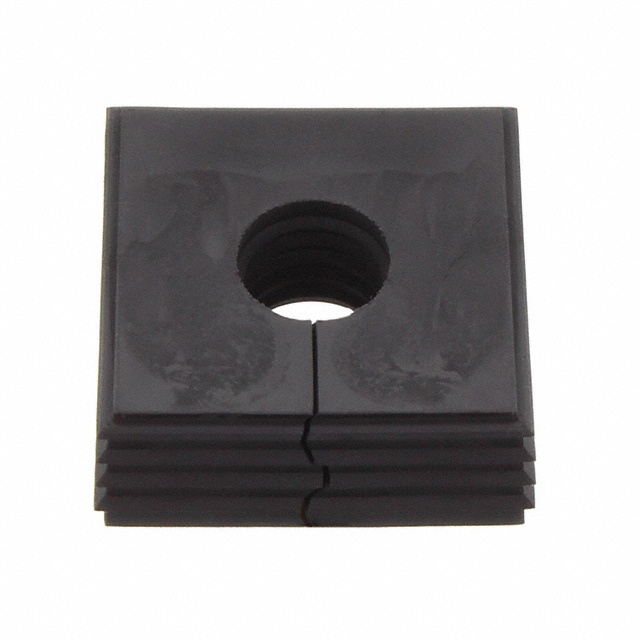

KDS LARGE SEALING SLEEVE 16MM
Deep-Dive with AI
Search across all available documentation for this part.
28536.4
ActiveConta-Clip, Inc.
KDS LARGE SEALING SLEEVE 16MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 28536.4 |
|---|---|
| Bushing, Grommet Type | Frame Grommet, Split |
| Color | Black |
| Features | IP66 - Dust Tight, Water Resistant |
| For Use With/Related Products | Wires, Cable |
| Material | Thermoplastic Elastomer (TPE) |
| Material Flammability Rating | UL94 HB |
| Panel Cutout Dimensions | 42.8 mm |
| Panel Cutout Dimensions [custom] | 1.685 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.37 | |
| 5 | $ 3.20 | |||
| 10 | $ 3.12 | |||
| 25 | $ 3.03 | |||
| 50 | $ 2.95 | |||
| 100 | $ 2.78 | |||
| 250 | $ 2.61 | |||
| 500 | $ 2.53 | |||
| 1000 | $ 2.44 | |||
Description
General part information
28536 Series
Square - 1.685" (42.80mm) Frame Grommet, Split 0.591" ~ 0.630" (15.00mm ~ 16.00mm) Black
Documents
Technical documentation and resources
No documents available
