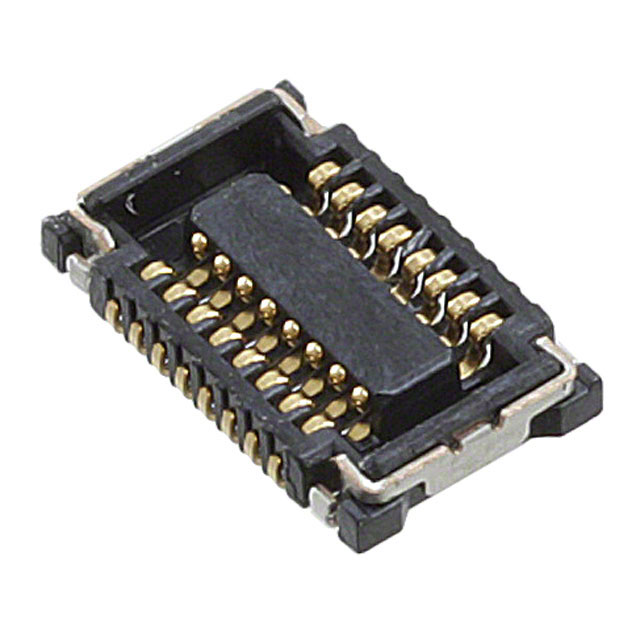

WP3-S016VA1-R6000

Obsolete

JAE Electronics

CONN RCPT 16POS SMD GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP3-S016VA1-R6000

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention
Height Above Board [z]	1 mm
Height Above Board [z]	0.039 in
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Positions	16
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

WP3-S0 Series

Part	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Mounting Type	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Number of Rows	Contact Finish	Mated Stacking Heights	Number of Positions
JAE Electronics WP3-S024VA1-R500	1 mm	0.039 in	0.016 in	0.4 mm	Surface Mount	Solder Retention	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	24	2	Gold	1 mm
JAE Electronics WP3-S070VA1-R6000	1 mm	0.039 in	0.016 in	0.4 mm	Surface Mount	Solder Retention	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	70	2	Gold	1 mm
JAE Electronics WP3-S022VA1-R6000	1 mm	0.039 in	0.016 in	0.4 mm	Surface Mount	Solder Retention	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	22 positions	2	Gold	1 mm
JAE Electronics WP3-S040VA1-R500	1 mm	0.039 in	0.016 in	0.4 mm	Surface Mount	Solder Retention	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	40	2	Gold	1 mm
JAE Electronics WP3-S040VA1-R6000	1 mm	0.039 in	0.016 in	0.4 mm	Surface Mount	Solder Retention	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	40	2	Gold	1 mm
JAE Electronics WP3-S030VA1-R500	1 mm	0.039 in	0.016 in	0.4 mm	Surface Mount	Solder Retention	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	30	2	Gold	1 mm
JAE Electronics WP3-S036VA1-R6000	1 mm	0.039 in	0.016 in	0.4 mm	Surface Mount	Solder Retention	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	36	2	Gold	1 mm
JAE Electronics WP3-S030VA1-R6000	1 mm	0.039 in	0.016 in	0.4 mm	Surface Mount	Solder Retention	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	30	2	Gold	1 mm
JAE Electronics WP3-S042VA1-R500	1 mm	0.039 in	0.016 in	0.4 mm	Surface Mount	Solder Retention	4 Áin	0.1 Ám	Center Strip Contacts Receptacle	42	2	Gold	1 mm
JAE Electronics WP3-S016VA1-R6000	1 mm	0.039 in	0.016 in	0.4 mm	Surface Mount	Solder Retention	4 Áin	0.1 Ám	Center Strip Contacts Receptacle		2	Gold	1 mm	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

WP3-S0 Series

16 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
