XMC1402Q048X0128AAXUMA1

Active

Infineon Technologies

IC: ARM MICROCONTROLLER; PG-VQFN-48; 16KBSRAM,128KBFLASH

Search across all available documentation for this part.

Active

Infineon Technologies

IC: ARM MICROCONTROLLER; PG-VQFN-48; 16KBSRAM,128KBFLASH

Technical Specifications

Parameters and characteristics for this part

Specification	XMC1402Q048X0128AAXUMA1

Connectivity	I2C, LINbus, UART/USART, SPI
Core Processor	ARM® Cortex®-M0
Core Size	32-Bit Single-Core
Data Converters	12x12b
Mounting Type	Surface Mount
Number of I/O	34
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	48-VFQFN Exposed Pad
Peripherals	WDT, POR, I2S, Brown-out Detect/Reset, PWM
Program Memory Size	128 KB
Program Memory Type	FLASH
RAM Size	16 K
Speed	48 MHz

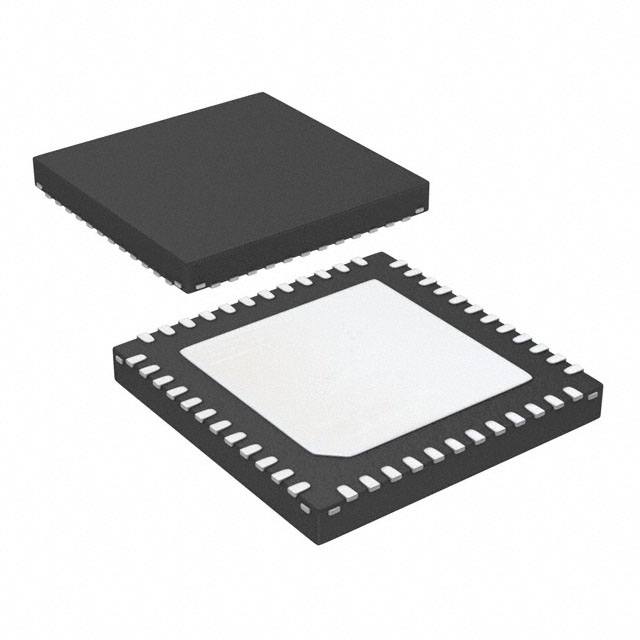

Supplier Device Package	PG-VQFN-48-73
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

Part	Peripherals	Program Memory Size	Speed	RAM Size	Mounting Type	Data Converters	Core Size	Oscillator Type	Connectivity	Operating Temperature [Max]	Operating Temperature [Min]	Program Memory Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Core Processor	Supplier Device Package	Package / Case	Number of I/O
Infineon Technologies XMC1402Q048X0128AAXUMA1	Brown-out Detect/Reset I2S POR PWM WDT	128 KB	48 MHz	16 K	Surface Mount	12x12b	32-Bit Single-Core	Internal	I2C LINbus SPI UART/USART	105 °C	-40 °C	FLASH	1.8 V	5.5 V	ARM® Cortex®-M0	PG-VQFN-48-73	48-VFQFN Exposed Pad	34
Infineon Technologies XMC1402F064X0128AAXUMA1	Brown-out Detect/Reset I2S POR PWM WDT	128 KB	48 MHz	16 K	Surface Mount	12x12b	32-Bit Single-Core	Internal	I2C LINbus SPI UART/USART	105 °C	-40 °C	FLASH	1.8 V	5.5 V	ARM® Cortex®-M0	PG-LQFP-64-6	64-LQFP Exposed Pad	48

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ARM® Cortex®-M0 XMC1000 Microcontroller IC 32-Bit Single-Core 48MHz 128KB (128K x 8) FLASH PG-VQFN-48-73
