MUSBAA11M0
ActiveAmphenol ICC (Commercial Products)

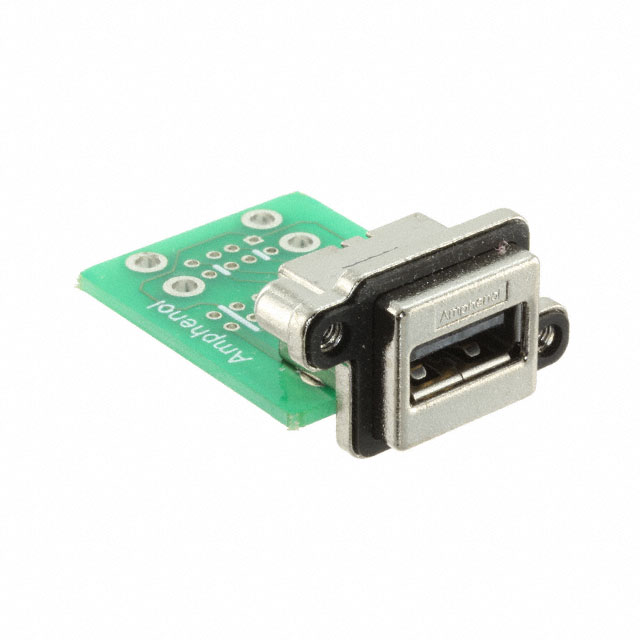

CONN RCP USB2.0 TYPEA 4P PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
MUSBAA11M0
ActiveAmphenol ICC (Commercial Products)
CONN RCP USB2.0 TYPEA 4P PNL MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MUSBAA11M0 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Receptacle |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Feature | Flange, Horizontal |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | PC Board, Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.05 | |
| 10 | $ 17.55 | |||
| 30 | $ 16.80 | |||
| 60 | $ 16.25 | |||
| 120 | $ 15.71 | |||
| 270 | $ 14.84 | |||
| 510 | $ 14.41 | |||
Description
General part information
MUSBA Series
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Panel Mount
