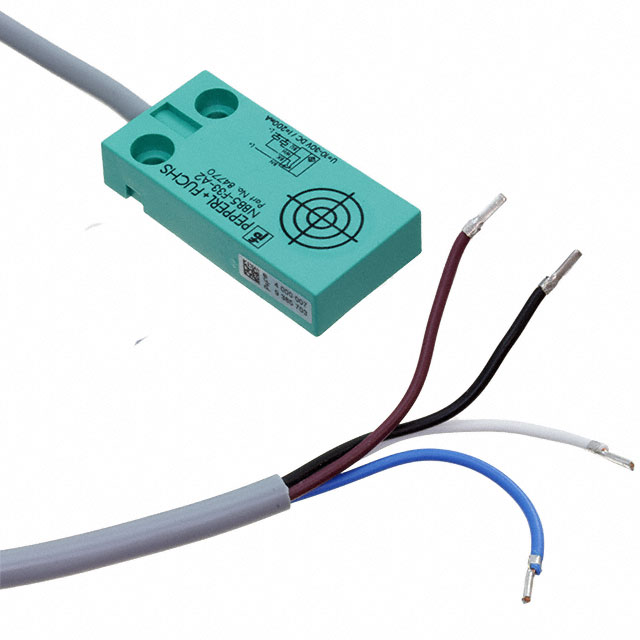

NBB5-F33-A2

Active

PEPPERL+FUCHS

INDUCTIVE SEN 5MM PNP

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 5MM PNP

Technical Specifications

Parameters and characteristics for this part

Specification	NBB5-F33-A2

Indicator [custom]	No Indicator
Ingress Protection	IP67
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	4-Wire, PNP-NC/NO
Package / Case	Module
Sensing Distance	0.197 in
Sensing Distance	5 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Sensor Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Sensing Distance	Sensing Distance	Package / Case	Material - Body	Indicator [custom]	Shielding	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type
PEPPERL+FUCHS NBB5-F33-A2	Inductive	IP67	70 °C	-25 °C	Cable	0.197 in	5 mm	Module	Polybutylene Terephthalate (PBT)	No Indicator	Unshielded	30 VDC	10 VDC	4-Wire PNP-NC/NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 5MM PNP
