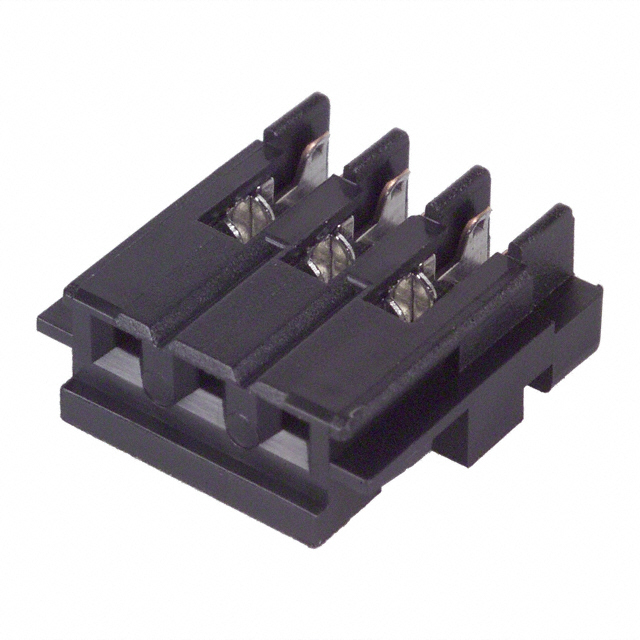

03HR-4K-P-N
ActiveJST Sales America Inc.
CONN RCPT 3POS IDC 24AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsJST Prefix Suffix Chart
03HR-4K-P-N
ActiveJST Sales America Inc.
CONN RCPT 3POS IDC 24AWG TIN
Deep-Dive with AI
DocumentsJST Prefix Suffix Chart
Technical Specifications
Parameters and characteristics for this part
| Specification | 03HR-4K-P-N |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Fastening Type | Detent Lock |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 1 |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Wire Gauge | 24 AWG |
| Wire Type | Discrete |
03HR Series
| Part | Wire Type | Contact Type | Pitch [x] | Pitch [x] | Features | Color | Number of Rows | Cable Termination | Contact Finish | Connector Type | Fastening Type | Mounting Type | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | Discrete | Female Socket | 0.098 in | 2.5 mm | Closed End | Black | 1 | IDC | Tin | Receptacle | Detent Lock | Free Hanging (In-Line) | 24 AWG |
JST Sales America Inc. | Discrete | Female Socket | 0.098 in | 2.5 mm | Closed End | Natural | 1 | IDC | Tin | Receptacle | Detent Lock | Free Hanging (In-Line) | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.25 | |
| 10 | $ 0.21 | |||
| 25 | $ 0.19 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| 3000 | $ 0.11 | |||
Description
General part information
03HR Series
3 Position Rectangular Receptacle Connector IDC Tin 24 AWG
