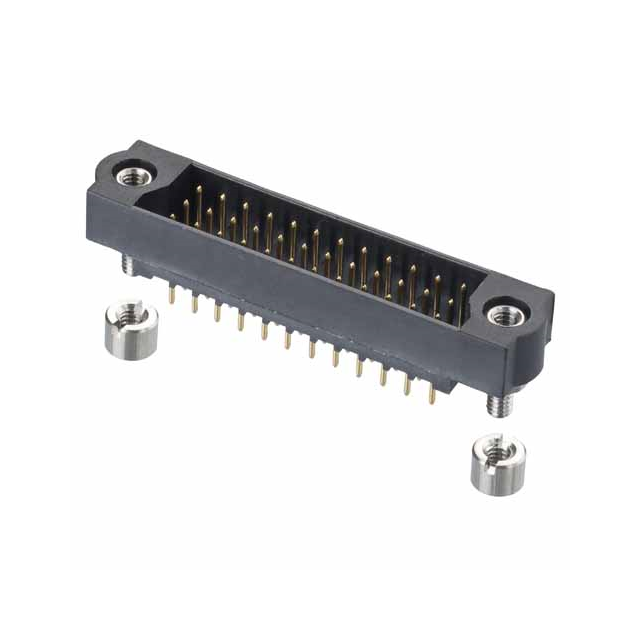

M83-LMT1M2N54-0000-000

Active

Harwin Inc.

18 X 3-ROW MALE VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 M80-0110001 +2

M83-LMT1M2N54-0000-000

Active

Harwin Inc.

18 X 3-ROW MALE VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-001 M80-0110001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M83-LMT1M2N54-0000-000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Features	Mounting Flange, Mating Flange, Mounting Hardware
Insulation Color	Black
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	54
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	120 VDC

M83-LMT1M Series

Part	Style	Insulation Material	Current Rating (Amps)	Contact Finish - Mating	Contact Shape	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post [x]	Material Flammability Rating	Connector Type	Mounting Type	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Type	Insulation Height	Insulation Height	Number of Positions	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Material	Termination
Harwin Inc. M83-LMT1M2N96-0000-000	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Gold	Circular	All	0.079 in	2 mm	3.2 mm	0.126 in	UL94 V-0	Header	Through Hole	Black	0.079 in	2 mm	120 VDC	29.5 Áin	0.75 Ám	3	Male Pin	0.24 in	6.1 mm	96	Shrouded - 4 Wall	-55 °C	125 °C	Mating Flange Mounting Flange Mounting Hardware	Phosphor Bronze	Solder
Harwin Inc. M83-LMT1M2N54-0000-000	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Gold	Circular	All	0.079 in	2 mm	3.2 mm	0.126 in	UL94 V-0	Header	Through Hole	Black	0.079 in	2 mm	120 VDC	29.5 Áin	0.75 Ám	3	Male Pin	0.24 in	6.1 mm	54	Shrouded - 4 Wall	-55 °C	125 °C	Mating Flange Mounting Flange Mounting Hardware	Phosphor Bronze	Solder
Harwin Inc. M83-LMT1M2N27-0000-000	Board to Board Cable	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Gold	Circular	All	0.079 in	2 mm	3.2 mm	0.126 in	UL94 V-0	Header	Through Hole	Black	0.079 in	2 mm	120 VDC	29.5 Áin	0.75 Ám	3	Male Pin	0.24 in	6.1 mm	27	Shrouded - 4 Wall	-55 °C	125 °C	Mating Flange Mounting Flange Mounting Hardware	Phosphor Bronze	Solder
