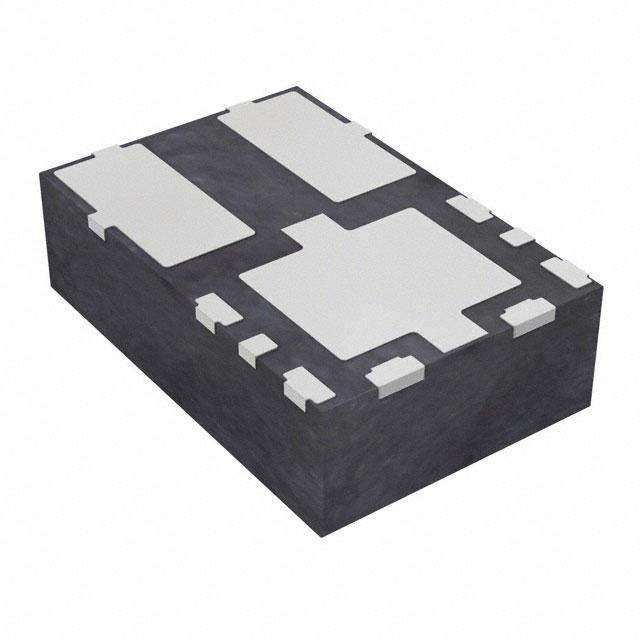

XCL212B082DR
ActiveTorex Semiconductor Ltd
DC DC CONVERTER 0.9-6V
Deep-Dive with AI
Search across all available documentation for this part.
XCL212B082DR
ActiveTorex Semiconductor Ltd
DC DC CONVERTER 0.9-6V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XCL212B082DR |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 94 % |
| Features | OCP, UVLO, OTP, SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 11-PowerLQFN Module |
| Size / Dimension [x] | 3.1 mm |
| Size / Dimension [x] | 0.12 in |
| Size / Dimension [y] | 0.19 in |
| Size / Dimension [y] | 4.7 mm |
| Size / Dimension [z] | 0.05 in |
| Size / Dimension [z] | 1.3 mm |
| Supplier Device Package | USP-11B01 |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output 1 [Max] | 6 V |
| Voltage - Output 1 [Min] | 0.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.18 | |
| 10 | $ 2.86 | |||
| 25 | $ 2.70 | |||
| 100 | $ 2.34 | |||
| 250 | $ 2.22 | |||
| 500 | $ 1.99 | |||
| Digi-Reel® | 1 | $ 3.18 | ||
| 10 | $ 2.86 | |||
| 25 | $ 2.70 | |||
| 100 | $ 2.34 | |||
| 250 | $ 2.22 | |||
| 500 | $ 1.99 | |||
| Tape & Reel (TR) | 1000 | $ 1.68 | ||
| 2000 | $ 1.60 | |||
| 5000 | $ 1.54 | |||
Description
General part information
XCL212 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.9 ~ 6V 2A 2.7V - 6V Input
