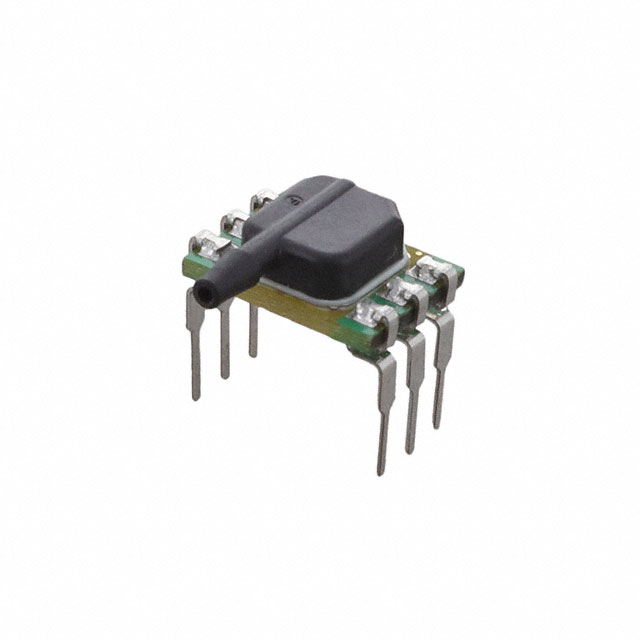

ABP2DRNT006KG2A3XX

Active

Honeywell Sensing and Productivity Solutions

SENSOR 0.87PSIG 14BIT 6DIP

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 0.87PSIG 14BIT 6DIP

Technical Specifications

Parameters and characteristics for this part

Specification	ABP2DRNT006KG2A3XX

Accuracy	0.25 %
Features	Temperature Compensated, Amplified Output
Mounting Type	Through Hole
Operating Pressure	6 kPa
Operating Pressure	0.87 PSI
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Output	14 b
Output Type	I2C
Package / Case	6-DIP Module, Side Port
Pressure Type	Vented Gauge
Supplier Device Package	6-DIP
Termination Style	PC Pin
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.8 V

Part	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Operating Pressure	Operating Pressure	Accuracy	Mounting Type	Package / Case	Features	Pressure Type	Output Type	Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package
Honeywell Sensing and Productivity Solutions ABP2DRNT006KG2A3XX	PC Pin	-40 °C	110 °C	6 kPa	0.87 PSI	0.25 %	Through Hole	6-DIP Module Side Port	Amplified Output Temperature Compensated	Vented Gauge	I2C	14 b	3.6 V	1.8 V	6-DIP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 0.87PSI (6kPa) Vented Gauge 14 b 6-DIP Module, Side Port
