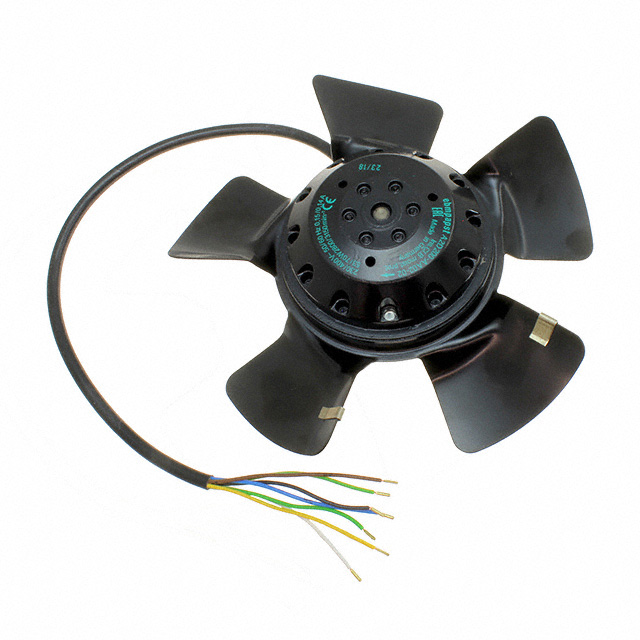

A2D200-AA02-02

Active

ebm-papst Inc.

AC AXIAL FAN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A2D200-AA02-02

Active

ebm-papst Inc.

AC AXIAL FAN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A2D200-AA02-02

Air Flow	14.68 m³/min
Air Flow	524.2 CFM
Bearing Type	Ball
Current Rating (Amps)	140 mA
Fan Type	Tubeaxial, 3 Phase
Features	Dual Voltage
Ingress Protection	IP44
Material - Blade	Steel
Noise	70 dB(A)
Operating Temperature [Max]	75 °C
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	70 W
RPM	3150 RPM
Size / Dimension [diameter]	195 mm
Static Pressure	1.204 in H2O
Static Pressure	300 Pa
Termination	7 Wire Leads with Splice Terminals
Voltage - Rated	230 VAC, 400 VAC

A2D200 Series

Part	Weight	Weight	Power (Watts)	Current Rating (Amps)	Voltage - Rated	Width [y]	Material - Blade	Ingress Protection	Static Pressure	Static Pressure	Size / Dimension [diameter]	Fan Type	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Bearing Type	Features	RPM	Approval Agency	Noise	Air Flow	Air Flow	Termination	Operating Temperature [Max]	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]
ebm-papst Inc. A2D200-AA02-01	1.7 kg	3.7 lbs	70 W	0.24 A	230 VAC 400 VAC	72.5 mm	Steel	IP44	299.9 Pa	1.204 in H2O	195 mm	Tubeaxial 3 Phase	-25 °C	-25 °C	70 °C	70 °C	Ball	Dual Voltage	3150 RPM
ebm-papst Inc. A2D200-AI18-01			70 W		400 VAC		Steel	IP44	140 Pa	0.562 in H2O	195 mm	Tubeaxial 3 Phase	-25 °C	-25 °C	70 °C	70 °C	Ball		2900 RPM	CCC CE EAC	68 dB	14.84 mł/min	530.1 CFM	7 Wire Leads with Splice Terminals
ebm-papst Inc. A2D200-AA02-02			70 W	140 mA	230 VAC 400 VAC		Steel	IP44	300 Pa	1.204 in H2O	195 mm	Tubeaxial 3 Phase	-25 °C	-25 °C		75 ░C	Ball	Dual Voltage	3150 RPM		70 dB(A)	14.68 m³/min	524.2 CFM	7 Wire Leads with Splice Terminals	75 °C
ebm-papst Inc. A2D200-AA04-15			70 W	110 mA	500 VAC		Steel	IP44	83 Pa	0.333 in H2O	195 mm	Tubeaxial 3 Phase	-25 °C	-25 °C	90 °C	90 °C	Ball		3150 RPM	CE				4 Wire Leads with Splice Terminals
ebm-papst Inc. A2D200-AA04-44	1.6 kg	3.5 lbs	65 W		230 VAC 400 VAC		Steel	IP44			195 mm	Tubeaxial 3 Phase	-25 °C	-25 °C		80 C	Ball	Dual Voltage	3100 RPM					1 Ring Terminal 6 Wire Leads with Splice Terminals	80 °C	0.19 A	0.11 A
ebm-papst Inc. A2D200-AA02-16			70 W		230 VAC 400 VAC		Steel	IP54 - Dust Protected Water Resistant	300 Pa	1.204 in H2O	195 mm	Tubeaxial 3 Phase	-25 °C	-25 °C		75 ░C	Ball	Dual Voltage	3150 RPM					7 Wire Leads with Splice Terminals	75 °C	0.24 A	0.14 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 194.12

Description

General part information

A2D200 Series

Fan Tubeaxial, 3 Phase 230/400VAC Round - 195mm Dia Ball 524.2 CFM (14.68m³/min 7 Wire Leads with Splice Terminals
