R161410130
ActiveRadiall USA, Inc.

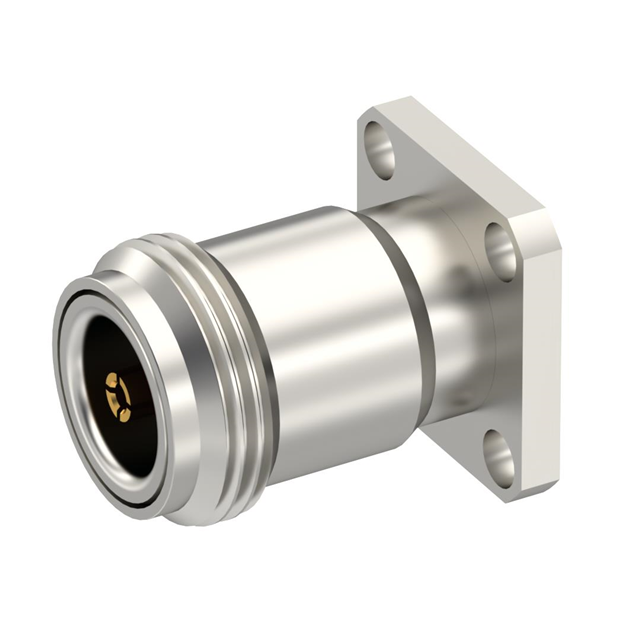

RF N CONNECTOR, 1 CONTACT(S), FEMALE, PANEL MOUNT, SOLDER LUG TERMINAL, LOCKING, JACK,
Deep-Dive with AI
Search across all available documentation for this part.
R161410130
ActiveRadiall USA, Inc.
RF N CONNECTOR, 1 CONTACT(S), FEMALE, PANEL MOUNT, SOLDER LUG TERMINAL, LOCKING, JACK,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R161410130 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features | Extended Insulation |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 1400 V |
R16141 Series
| Part | Impedance | Center Contact Material | Contact Termination | Body Finish | Housing Color | Connector Type | Voltage Rating | Number of Ports | Shield Termination | Ingress Protection | Frequency - Max [Max] | Mounting Feature | Body Material | Mounting Type | Connector Style | Insertion Loss | Mating Cycles | Dielectric Material | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | 50 Ohms | Bronze | Solder | White Bronze | Silver | Female Socket Jack | 850 V | 1 | Solder | IP67 - Dust Tight Waterproof | 11 GHz | Flange | Brass | Panel Mount Through Hole | N Type | 0.15 dB | 500 | Polytetrafluoroethylene (PTFE) | Gold | |||
Radiall USA, Inc. | 50 Ohms | Beryllium Copper | Solder Tab | White Bronze | Silver | Female Socket Jack | 500 V | 1 | Solder | IP67 - Dust Tight Waterproof | 11 GHz | Flange | Brass | Panel Mount Through Hole | N Type | 0.15 dB | 500 | Polytetrafluoroethylene (PTFE) | Gold | 155 °C | -55 °C | |
Radiall USA, Inc. | 50 Ohms | Beryllium Copper | Solder | White Bronze | Silver | Female Socket Jack | 1400 V | 1 | Solder | IP67 - Dust Tight Waterproof | 11 GHz | Flange | Brass | Panel Mount Through Hole | N Type | 0.15 dB | 500 | Polytetrafluoroethylene (PTFE) | Gold | 155 °C | -55 °C | |
Radiall USA, Inc. | 50 Ohms | Beryllium Copper | Solder | White Bronze | Silver | Female Socket Jack | 1400 V | 1 | Solder | IP67 - Dust Tight Waterproof | 11 GHz | Flange | Brass | Panel Mount Through Hole | N Type | 0.15 dB | 500 | Polytetrafluoroethylene (PTFE) | Gold | 155 °C | -55 °C | |
Radiall USA, Inc. | 50 Ohms | Beryllium Copper | Solder | White Bronze | Silver | Female Socket Jack | 1400 V | 1 | Solder | 11 GHz | Flange | Brass | Panel Mount Through Hole | N Type | 0.15 dB | 500 | Polytetrafluoroethylene (PTFE) | Gold | 155 °C | -55 °C | Extended Insulation | |
Radiall USA, Inc. | 50 Ohms | Beryllium Copper | Solder | White Bronze | Silver | Female Socket Jack | 1400 V | 1 | Solder | 11 GHz | Flange | Brass | Panel Mount Through Hole | N Type | 0.15 dB | 500 | Polytetrafluoroethylene (PTFE) | Gold | 155 °C | -55 °C | Extended Insulation | |
Radiall USA, Inc. | 50 Ohms | Beryllium Copper | Solder | Nickel | Silver | Female Socket Jack | 1400 V | 1 | Solder | 11 GHz | Flange | Brass | N Type | 500 | Polytetrafluoroethylene (PTFE) | Gold | 155 °C | -55 °C | Extended Insulation | |||
Radiall USA, Inc. | 50 Ohms | Beryllium Copper | Solder | White Bronze | Silver | Female Socket Jack | 1400 V | 1 | Solder | IP67 - Dust Tight Waterproof | 11 GHz | Flange | Brass | Panel Mount Through Hole | N Type | 0.15 dB | 500 | Polytetrafluoroethylene (PTFE) | Gold | 155 °C | -55 °C | Extended Insulation |
Radiall USA, Inc. | 50 Ohms | Beryllium Copper | Solder Tab | White Bronze | Silver | Female Socket Jack | 1400 V | 1 | Solder | 11 GHz | Flange | Brass | Panel Mount Through Hole | N Type | 0.15 dB | 500 | Polytetrafluoroethylene (PTFE) | Gold | 155 °C | -55 °C | ||
Radiall USA, Inc. | 50 Ohms | Beryllium Copper | Solder Cup | White Bronze | Silver | Female Socket Jack | 500 V | 1 | Solder | 11 GHz | Flange | Brass | Panel Mount Through Hole | N Type | 0.15 dB | 500 | Polytetrafluoroethylene (PTFE) | Gold | 155 °C | -55 °C |
