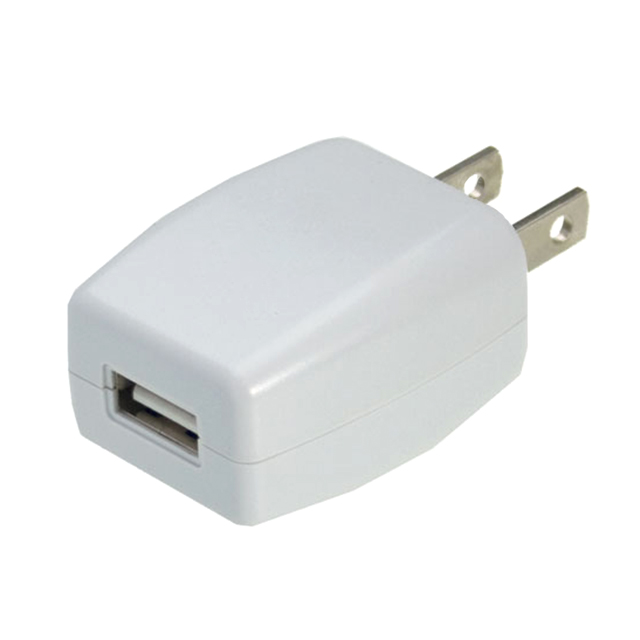

GS05U-USB

Obsolete

MEAN WELL USA Inc.

AC/DC WALL MOUNT ADAPTER 5V 5W

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

AC/DC WALL MOUNT ADAPTER 5V 5W

Technical Specifications

Parameters and characteristics for this part

Specification	GS05U-USB

Applications	ITE (Commercial)
Approval Agency	cULus
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Power (Watts)	5 W
Region Utilized	North America
Size / Dimension [x]	1.29 in
Size / Dimension [x]	32.8 mm
Size / Dimension [y]	0.94 in
Size / Dimension [y]	23.8 mm
Size / Dimension [z]	41.9 mm
Size / Dimension [z]	1.65 "
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Efficiency	Form	Input Connector	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output	Approval Agency	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Current - Output (Max) [Max]	Region Utilized	No Load Power Consumption [Max]
MEAN WELL USA Inc. GS05U-USB	Level VI	Wall Mount (Class II)	NEMA 1-15P	ITE (Commercial)	1.29 in	41.9 mm	1.65 "	0.94 in	23.8 mm	32.8 mm	5 V	cULus	5 W	50 °C	-20 C	90 VAC	264 VAC	Fixed Blade	1 A	North America	75 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.26

General part information

5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
