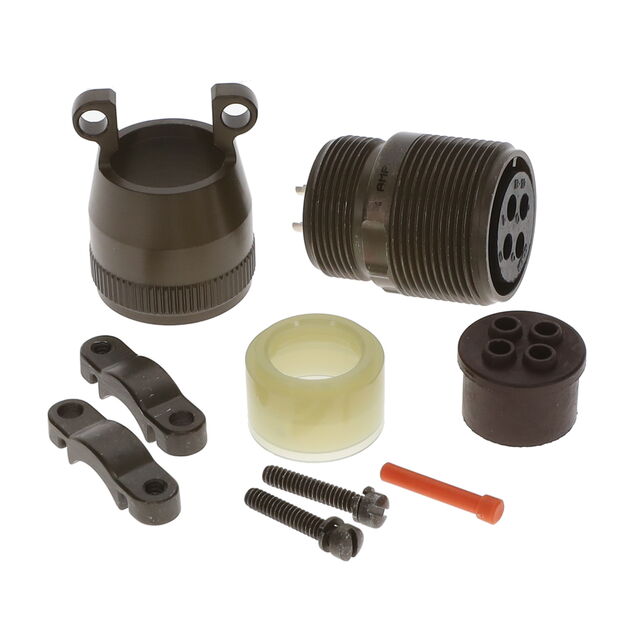

MS3101E18-10S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3101E18-10S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3101E18-10S |
|---|---|
| Applications | Military, Marine |
| Cable Opening [custom] | 0.531 in |
| Cable Opening [custom] | 13.49 mm |
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 23 A |
| Features | Strain Relief |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 18-10 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 46.29 | |
| 10 | $ 42.48 | |||
| 25 | $ 40.84 | |||
| 50 | $ 39.48 | |||
| 100 | $ 37.30 | |||
| 250 | $ 36.22 | |||
| Bulk | 1 | $ 72.55 | ||
| 10 | $ 62.88 | |||
| 25 | $ 55.48 | |||
| 50 | $ 49.64 | |||
| 100 | $ 43.53 | |||
Description
General part information
MS3101E18 Series
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
