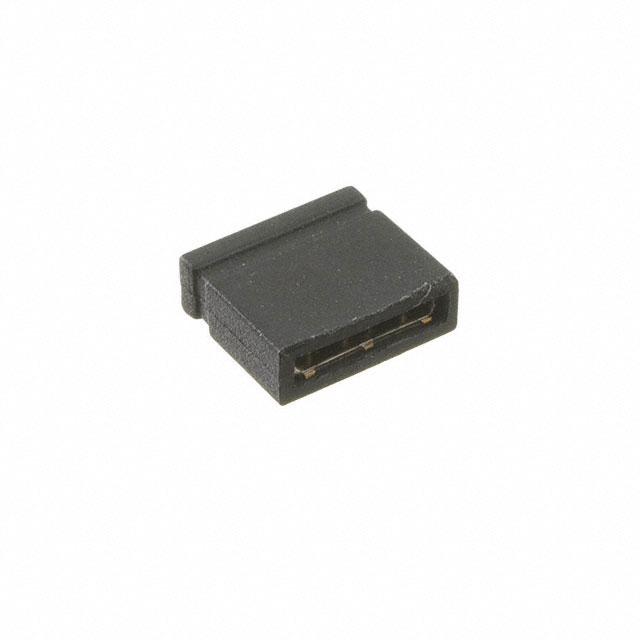

MSE-G
ActiveAdam Tech
SHUNT 2.54MM PITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSE-G |
|---|---|
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Current Rating (Amps) | 3 A |
| Gender | Female Sockets |
| Height [z] | 6.5 mm |
| Height [z] | 0.256 " |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions or Pins (Grid) | 3 |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Type | Closed Top |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.25 | |
| 10 | $ 0.19 | |||
| 25 | $ 0.17 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| 2500 | $ 0.10 | |||
Description
General part information
MSE Series
3 (1 x 3) Position Shunt Connector Black Closed Top 0.200" (5.08mm) Gold
