AEA227N00000201000

Active

TE Intercontec

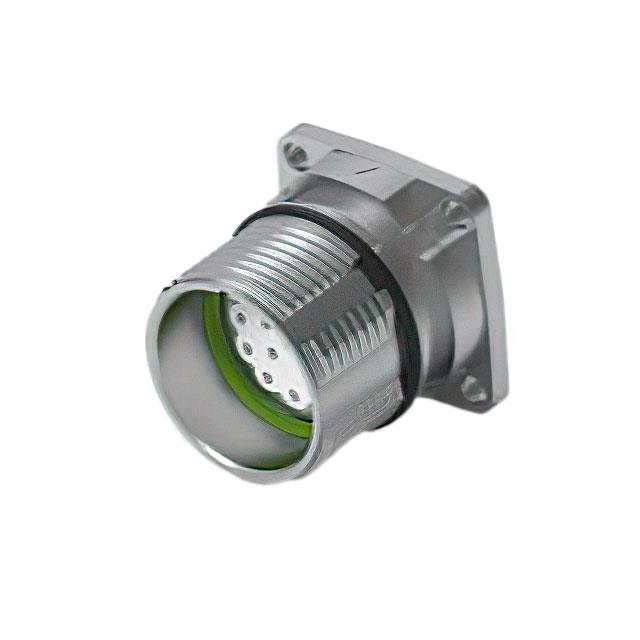

CONN RCPT HSG MALE 17POS PNL MT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 17POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	AEA227N00000201000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Housing Color	Silver
Includes	1 Connector, 1 O-Ring
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-17
Shielding	Unshielded
Type	For Male Pins

Part	Contact Shape	Note	Connector Type	Mounting Feature	Ingress Protection	Shell Finish	Type	Fastening Type	Orientation	Shielding	Insert Material	Housing Color	Material Flammability Rating	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Includes
TE Intercontec AEA227N00000201000	Circular	Contacts Not Included	Receptacle Housing	Flange	IP66/IP67	Nickel	For Male Pins	Push-Twist	Keyed	Unshielded	Polybutylene Terephthalate (PBT)	Silver	UL94 V-0	Zinc Die Cast	-20 C	130 °C	M23-17	1 Connector 1 O-Ring

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17 Position Circular Connector Receptacle Housing Panel Mount
