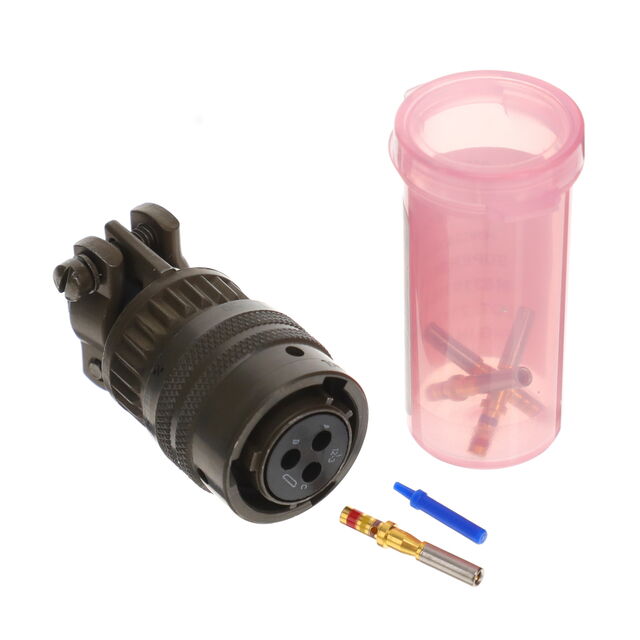

MS3126F12-3SY

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB PLUG

Deep-Dive with AI

Search across all available documentation for this part.

Documents10-101949-010 Datasheet

MS3126F12-3SY

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB PLUG

Deep-Dive with AI

Documents10-101949-010 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3126F12-3SY

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Cable Opening [diameter]	0.312 in
Cable Opening [diameter]	7.93 mm
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Features	Strain Relief, Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Y
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	12-3
Shielding	Unshielded
Termination	Crimp
Voltage Rating	1000 VAC

MS3126F12 Series

Part	Features	Termination	Applications	Fastening Type	Shell Material	Contact Material	Current Rating (Amps)	Primary Material	Qualification	Mounting Type	Shell Finish	Insert Material	Grade	Cable Opening [diameter]	Cable Opening [diameter]	Voltage Rating	Connector Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shielding	Shell Size - Insert	Orientation	Ingress Protection	Backshell Material, Plating	Number of Positions	Mounting Feature
Amphenol Industrial Operations MS3126F12-8P(LC)
Amphenol Industrial Operations MS3126F12-3SY	Coupling Nut Strain Relief	Crimp	Aerospace Industrial Instrumentation Mass Transit Military	Bayonet Lock	Aluminum	Copper Alloy	13 A	Metal	MIL-DTL-26482 Series I	Free Hanging (In-Line)	Olive Drab Chromate over Cadmium	Neoprene	Military	0.312 in	7.93 mm	1000 VAC	Female Sockets Plug	Gold	-55 °C	125 °C	Olive Drab	Unshielded	12-3	Y	Environment Resistant
Amphenol Industrial Operations MS3126F12-10S(LC)
Amphenol Industrial Operations MS3126F-12-3S	Backshell Cable Clamp Coupling Nut	Crimp	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Bayonet Lock	Aluminum	Copper Alloy		Metal	MIL-DTL-26482 Series I	Free Hanging (In-Line)	Olive Drab Chromate over Cadmium	Neoprene	Military				Female Sockets Plug	Gold	-55 °C	125 °C	Olive Drab	Unshielded	12-3	N	Environment Resistant	Aluminum Olive Drab Chromate over Cadmium
Amphenol Industrial Operations MS3126F12-10PZ	Backshell Cable Clamp Coupling Nut	Crimp	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Bayonet Lock	Aluminum	Copper Alloy		Metal	MIL-DTL-26482 Series I		Olive Drab Chromate over Cadmium	Neoprene	Military				Male Pins Plug	Gold	-55 °C	125 °C	Olive Drab	Unshielded		Z	Environment Resistant	Aluminum Olive Drab Chromate over Cadmium	10	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 93.10
		10	$ 85.43
		25	$ 82.14
		50	$ 79.41
		100	$ 75.02

Description

General part information

MS3126F12 Series

3 Position Circular Connector Plug, Female Sockets Crimp
