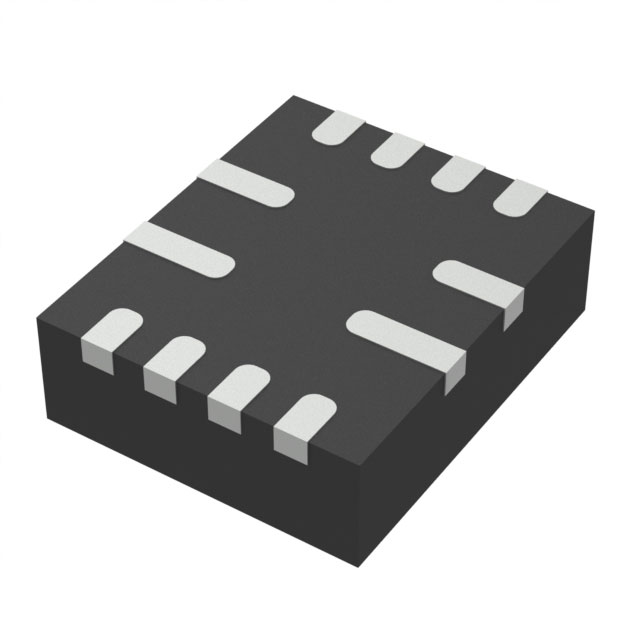

MPQ4571GQB-AEC1-P
ActiveDC-DC SWITCHING STEP-DOWN REGULATOR, ADJUSTABLE, 4.5V TO 60V IN, 1V TO 54V OUT, 1A OUT, QFN-12
Deep-Dive with AI
Search across all available documentation for this part.
MPQ4571GQB-AEC1-P
ActiveDC-DC SWITCHING STEP-DOWN REGULATOR, ADJUSTABLE, 4.5V TO 60V IN, 1V TO 54V OUT, 1A OUT, QFN-12
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ4571GQB-AEC1-P |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching [Max] | 2.2 MHz |
| Frequency - Switching [Min] | 400 kHz |
| Function | Step-Down |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 12-VFQFN |
| Qualification | AEC-Q100 |
| Supplier Device Package | 12-QFN (2.5x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 60 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) [Max] | 54 V |
| Voltage - Output (Min/Fixed) | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.36 | |
| 10 | $ 3.92 | |||
| 25 | $ 3.70 | |||
| 100 | $ 3.21 | |||
| 250 | $ 3.05 | |||
| Digi-Reel® | 1 | $ 4.36 | ||
| 10 | $ 3.92 | |||
| 25 | $ 3.70 | |||
| 100 | $ 3.21 | |||
| 250 | $ 3.05 | |||
| Tape & Reel (TR) | 500 | $ 2.73 | ||
| 1000 | $ 2.30 | |||
| 2500 | $ 2.19 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 5.75 | |
| 10 | $ 4.46 | |||
| 25 | $ 4.26 | |||
| 50 | $ 4.08 | |||
| 100 | $ 3.88 | |||
| 250 | $ 3.60 | |||
| 500 | $ 3.41 | |||
| 1000 | $ 3.33 | |||
Description
General part information
MPQ4571 Series
MPQ4571 is a fully integrated, fixed frequency, synchronous step-down converter. It can achieve up to 1A of continuous output current with peak current control for excellent transient response. The wide 4.5V to 60V input voltage range accommodates a variety of step down applications in an automotive input environment. The device’s 2μA shutdown mode quiescent current makes it ideal in battery-powered applications. The MPQ4571 integrates internal high-side and low-side power MOSFETs for high efficiency without an external schottky diode. It employs advanced asynchronous modulation (AAM) to achieve high efficiency during light-load conditions by scaling down the frequency to reduce switching and gate driver losses. Standard features include built-in soft start, enable control and power good indication. It is available in a QFN-12 (2.5mmx3mm) package. Typical applications include automotive infotainment, automotive lamps and LEDs, automotive motor control and industrial power systems.
