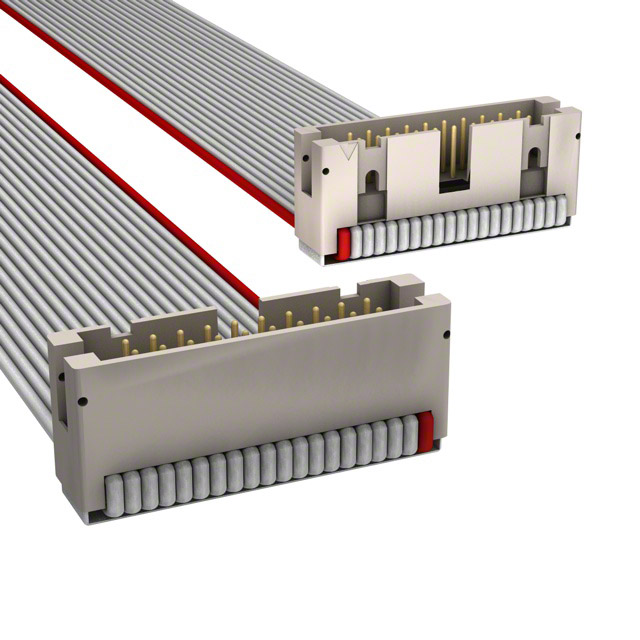

M3RRK-2006J

Active

3M (TC)

IDC CABLE - MPR20K/MC20G/MPR20K

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet Datasheet +1

M3RRK-2006J

Active

3M (TC)

IDC CABLE - MPR20K/MC20G/MPR20K

Deep-Dive with AI

Documents3365 Series Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3RRK-2006J

Cable Termination	IDC
Connector Type	Plug to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3RRK Series

Part	Length	Length	Length	Features	Number of Positions	Connector Type	Pitch - Connector	Pitch - Connector	Number of Rows	Cable Termination	Shielding	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Contact Finish	Length	Color	Length [x]	Length [x]
3M (TC) M3RRK-2006J	152.4 mm	6 "	0.5 '	Polarizing Key Strain Relief	20	Plug to Plug	0.1 in	2.54 mm	2	IDC	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	Gold
3M (TC) M3RRK-6420K	508 mm			Polarizing Key Strain Relief	64	Plug to Plug	0.1 in	2.54 mm	2	IDC	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	Gold	1.67 ft	Multiple Twisted Pair (Flat)
3M (TC) M3RRK-1040K				Polarizing Key Strain Relief	10	Plug to Plug	0.1 in	2.54 mm	2	IDC	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	Gold		Multiple Twisted Pair (Flat)	1.02 m	3.34 ft
3M (TC) M3RRK-6036J				Polarizing Key Strain Relief	60	Plug to Plug	0.1 in	2.54 mm	2	IDC	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	Gold			914.4 mm	3 ft
3M (TC) M3RRK-1418R				Polarizing Key Strain Relief	14	Plug to Plug	0.1 in	2.54 mm	2	IDC	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	Gold		Multiple Ribbon	457.2 mm	1.5 ft
3M (TC) M3RRK-5036R				Polarizing Key Strain Relief	50	Plug to Plug	0.1 in	2.54 mm	2	IDC	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	Gold		Multiple Ribbon	914.4 mm	3 ft
3M (TC) M3RRK-1420K	508 mm			Polarizing Key Strain Relief	14	Plug to Plug	0.1 in	2.54 mm	2	IDC	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	Gold	1.67 ft	Multiple Twisted Pair (Flat)
3M (TC) M3RRK-4018J				Polarizing Key Strain Relief	40	Plug to Plug	0.1 in	2.54 mm	2	IDC	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	Gold			457.2 mm	1.5 ft
3M (TC) M3RRK-3418R				Polarizing Key Strain Relief	34	Plug to Plug	0.1 in	2.54 mm	2	IDC	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	Gold		Multiple Ribbon	457.2 mm	1.5 ft
3M (TC) M3RRK-5036J				Polarizing Key Strain Relief	50	Plug to Plug	0.1 in	2.54 mm	2	IDC	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	Gold			914.4 mm	3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.31
		10	$ 21.07
		25	$ 19.08
		50	$ 17.74
		100	$ 16.53
		250	$ 15.09
		500	$ 14.13

Description

General part information

M3RRK Series

20 Position Cable Assembly Rectangular Plug to Plug 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

3365 Series Datasheet

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
