TB006-508-10BE

Active

CUI Devices

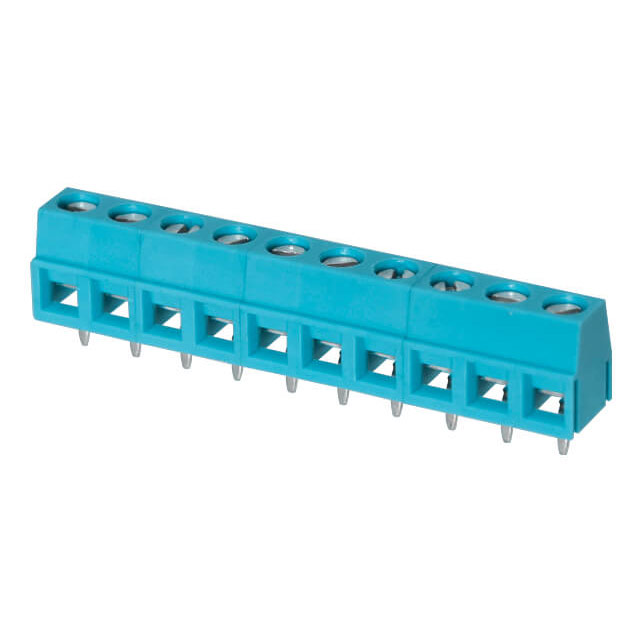

TERMINAL BLOCK, SCREW TYPE, 5.08

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TB006-508-10BE

Active

CUI Devices

TERMINAL BLOCK, SCREW TYPE, 5.08

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TB006-508-10BE

Clamp Material - Plating	Copper Alloy - Nickel Plated
Color	Blue
Contact Material - Plating	Copper Alloy - Tin Plated
Current	12 A
Features	Interlocking (Side)
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	10
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M3
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Voltage	300 V
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Screw - Rising Cage Clamp

TB006 Series

Part	Wire Gauge [Max]	Wire Gauge [Min]	Color	Number of Levels	Mating Orientation	Screw Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Torque - Screw	Torque - Screw	Contact Material - Plating	Wire Termination	Pitch [x]	Pitch [x]	Clamp Material - Plating	Current	Mounting Type	Positions Per Level	Voltage	Screw Thread
CUI Devices TB006-508-22BE	26 AWG	14 AWG	Blue	1	Horizontal with Board	Steel Zinc Plated	-40 °C	105 ░C	Interlocking (Side)	4.4 Lb-In	0.5 Nm	Copper Alloy - Tin Plated	Screw - Rising Cage Clamp	0.2 in	5.08 mm	Copper Alloy - Nickel Plated	12 A	Through Hole	22	300 V	M3
CUI Devices TB006-508-13BE	26 AWG	14 AWG	Blue	1	Horizontal with Board	Steel Zinc Plated	-40 °C	105 ░C	Interlocking (Side)	4.4 Lb-In	0.5 Nm	Copper Alloy - Tin Plated	Screw - Rising Cage Clamp	0.2 in	5.08 mm	Copper Alloy - Nickel Plated	12 A	Through Hole	13	300 V	M3
CUI Devices TB006-508-11BE	26 AWG	14 AWG	Blue	1	Horizontal with Board	Steel Zinc Plated	-40 °C	105 ░C	Interlocking (Side)	4.4 Lb-In	0.5 Nm	Copper Alloy - Tin Plated	Screw - Rising Cage Clamp	0.2 in	5.08 mm	Copper Alloy - Nickel Plated	12 A	Through Hole	11	300 V	M3
CUI Devices TB006-508-06BE	26 AWG	14 AWG	Blue	1	Horizontal with Board	Steel Zinc Plated	-40 °C	105 ░C	Interlocking (Side)	4.4 Lb-In	0.5 Nm	Copper Alloy - Tin Plated	Screw - Rising Cage Clamp	0.2 in	5.08 mm	Copper Alloy - Nickel Plated	12 A	Through Hole	6	300 V	M3
CUI Devices TB006-508-20BE	26 AWG	14 AWG	Blue	1	Horizontal with Board	Steel Zinc Plated	-40 °C	105 ░C	Interlocking (Side)	4.4 Lb-In	0.5 Nm	Copper Alloy - Tin Plated	Screw - Rising Cage Clamp	0.2 in	5.08 mm	Copper Alloy - Nickel Plated	12 A	Through Hole	20	300 V	M3
CUI Devices TB006-508-19BE	26 AWG	14 AWG	Blue	1	Horizontal with Board	Steel Zinc Plated	-40 °C	105 ░C	Interlocking (Side)	4.4 Lb-In	0.5 Nm	Copper Alloy - Tin Plated	Screw - Rising Cage Clamp	0.2 in	5.08 mm	Copper Alloy - Nickel Plated	12 A	Through Hole	19	300 V	M3
CUI Devices TB006-508-02BE	26 AWG	14 AWG	Blue	1	Horizontal with Board	Steel Zinc Plated	-40 °C	105 ░C	Interlocking (Side)	4.4 Lb-In	0.5 Nm	Copper Alloy - Tin Plated	Screw - Rising Cage Clamp	0.2 in	5.08 mm	Copper Alloy - Nickel Plated	12 A	Through Hole	2	300 V	M3
CUI Devices TB006-508-08BE	26 AWG	14 AWG	Blue	1	Horizontal with Board	Steel Zinc Plated	-40 °C	105 ░C	Interlocking (Side)	4.4 Lb-In	0.5 Nm	Copper Alloy - Tin Plated	Screw - Rising Cage Clamp	0.2 in	5.08 mm	Copper Alloy - Nickel Plated	12 A	Through Hole	8	300 V	M3
CUI Devices TB006-508-15BE	26 AWG	14 AWG	Blue	1	Horizontal with Board	Steel Zinc Plated	-40 °C	105 ░C	Interlocking (Side)	4.4 Lb-In	0.5 Nm	Copper Alloy - Tin Plated	Screw - Rising Cage Clamp	0.2 in	5.08 mm	Copper Alloy - Nickel Plated	12 A	Through Hole	15	300 V	M3
CUI Devices TB006-508-10BE	26 AWG	14 AWG	Blue	1	Horizontal with Board	Steel Zinc Plated	-40 °C	105 ░C	Interlocking (Side)	4.4 Lb-In	0.5 Nm	Copper Alloy - Tin Plated	Screw - Rising Cage Clamp	0.2 in	5.08 mm	Copper Alloy - Nickel Plated	12 A	Through Hole	10	300 V	M3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.77
		10	$ 1.34
		25	$ 1.24
		50	$ 1.12
		100	$ 1.09
		250	$ 0.95
		695	$ 0.87
		1390	$ 0.79
		5560	$ 0.70

Description

General part information

TB006 Series

10 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
