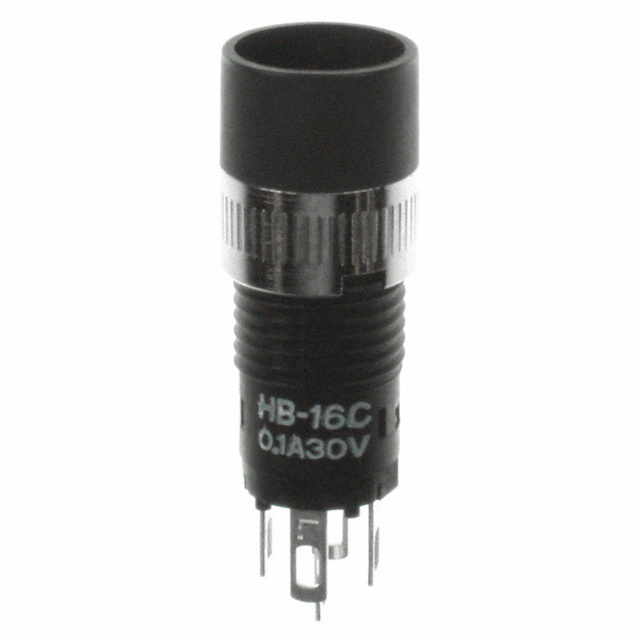

HB16CKW01

Active

NKK Switches

PUSHBUTTON SWITCH, HB SERIES, 8 MM, SPDT, ON-ON, PLUNGER FOR CAP

Search across all available documentation for this part.

Active

NKK Switches

PUSHBUTTON SWITCH, HB SERIES, 8 MM, SPDT, ON-ON, PLUNGER FOR CAP

Technical Specifications

Parameters and characteristics for this part

Specification	HB16CKW01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	30 V
Voltage Rating - DC	30 V

Part	Mounting Type	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Mechanical Life	Actuator Type	Voltage Rating - AC	Circuit	Switch Function	Actuator Marking	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Termination Style	Electrical Life
NKK Switches HB16CKW01	Panel Mount Front	30 V	8 mm	100000 Cycles	Plunger for Cap	30 V	SPDT	On-On	No Marking	Standard	70 °C	-25 °C	100 mA	Solder Lug	50000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Front
