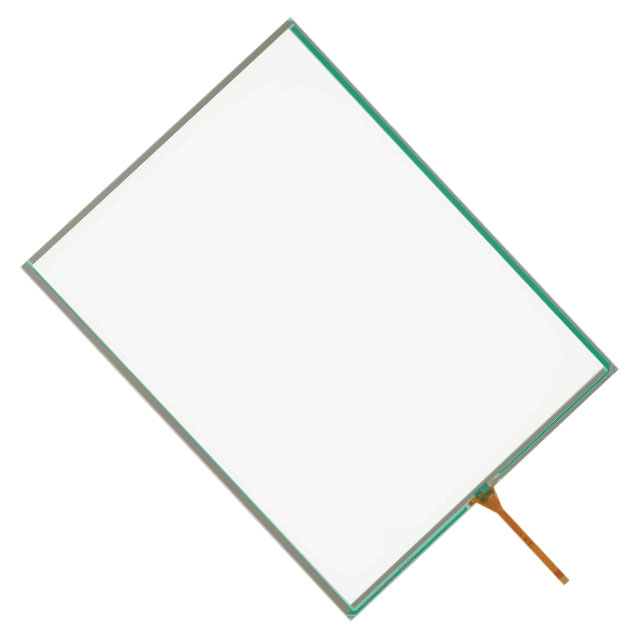

FTAS00-15AN-4A

Active

NKK Switches

TOUCH SCREEN, 15", ANALOG RESISTIVE, 0 °C TO 70 °C, 12.13" X 9.14", FT SERIES

Search across all available documentation for this part.

Active

NKK Switches

TOUCH SCREEN, 15", ANALOG RESISTIVE, 0 °C TO 70 °C, 12.13" X 9.14", FT SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Length	Length	Diagonal Screen Size	Diagonal Screen Size	Interface	Type	Width [x]	Width [x]	Height [custom]	Height [custom]	Height [z]	Height [z]	Length [x]	Length [x]	Width [y]	Width [y]
NKK Switches FTAS00-65AS4	5.43 in	138 mm	165.1 mm	6.5 in	4-Wire	Resistive	1.4 mm	0.06 in	105 mm	4.13 in
NKK Switches FTAS00-6.5AS-4A	5.43 in	138 mm	165.1 mm	6.5 in	4-Wire	Resistive	1.4 mm	0.06 in	105 mm	4.13 in
NKK Switches FTAS00-57AS4	4.76 in	121 mm	144.78 mm	5.7 in	4-Wire	Resistive	1.4 mm	0.06 in			91.6 mm	3.61 in
NKK Switches FTAS00-121A5			307.34 mm	12.1 in	RS232 USB	Resistive					190.6 mm	7.5 in	9.94 "	252.4 mm	2.1 mm	0.08 in
NKK Switches FTAS00-15AN-4A	12.13 in	308.1 mm	380 mm	15 "	4-Wire	Resistive	2.03 mm	0.08 "			232.1 mm	9.14 in
NKK Switches FTAS00-10.4AS-4	8.46 in	215 mm	264.16 mm	10.4 in	4-Wire	Resistive					162.4 mm	6.39 in			2.1 mm	0.08 in
NKK Switches FTAS00-19AN-4	15.04 in	382 mm	482.6 mm	19 in	4-Wire	Resistive					307.4 mm	12.1 in			2.1 mm	0.08 in
NKK Switches FTAS00-12.1AW-4A			307.34 mm	12.1 in	4-Wire	Resistive	2.03 mm	0.08 "			166.4 mm	6.55 in	10.4 in	264.26 mm
NKK Switches FTAS00-15A-5	12.19 in	309.5 mm	380 mm	15 "	5-Wire	Resistive					233.5 mm	9.19 in			2.1 mm	0.08 in
NKK Switches FTAS00-150A4	12.91 "	328 mm	380 mm	15 "	4-Wire	Resistive	248.92 mm	9.8 in			2.1 mm	0.08 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Resistive Touch Screen Overlay 15" (380mm) 4-Wire
