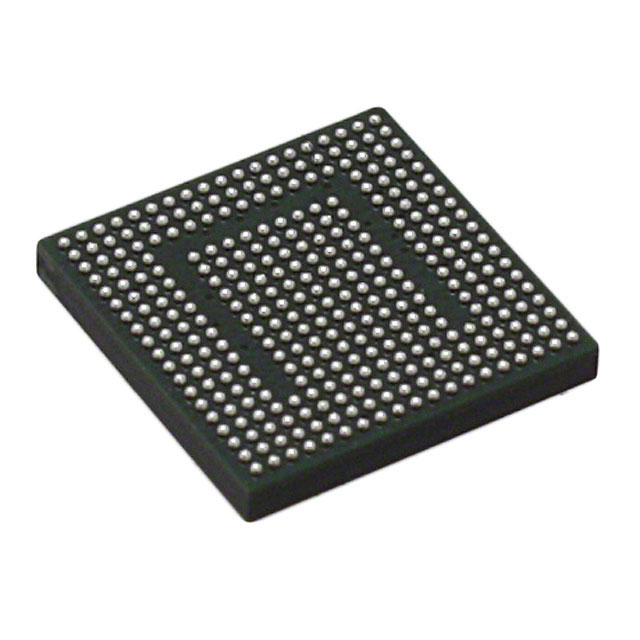

LFE3-17EA-8MG328I

Active

LATTICE SEMICONDUCTOR

IC FPGA 116 I/O 328CSBGA

Search across all available documentation for this part.

Active

LATTICE SEMICONDUCTOR

IC FPGA 116 I/O 328CSBGA

Technical Specifications

Parameters and characteristics for this part

Specification	LFE3-17EA-8MG328I

Mounting Type	Surface Mount
Number of I/O	116 I/O
Number of LABs/CLBs	2125
Number of Logic Elements/Cells	17000
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Package / Case	328-LFBGA, CSBGA
Supplier Device Package	328-CSBGA
Supplier Device Package [x]	10
Supplier Device Package [y]	10
Total RAM Bits	716800

Part	Supplier Device Package	Package / Case	Number of Logic Elements/Cells	Number of LABs/CLBs	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of I/O	Total RAM Bits	Supplier Device Package [x]	Supplier Device Package [y]
LATTICE SEMICONDUCTOR LFE3-17EA-8FTN256C	256-FTBGA (17x17)	256-BGA	17000	2125	0 °C	85 °C	Surface Mount	133	716800
LATTICE SEMICONDUCTOR LFE3-17EA-8LFN484C	484-FPBGA (23x23)	484-BBGA	17000	2125	0 °C	85 °C	Surface Mount	222	716800
LATTICE SEMICONDUCTOR LFE3-17EA-6FTN256I	256-FTBGA (17x17)	256-BGA	17000	2125	-40 C	100 °C	Surface Mount	133	716800
LATTICE SEMICONDUCTOR LFE3-17EA-7FN484I	484-FPBGA (23x23)	484-BBGA	17000	2125	-40 C	100 °C	Surface Mount	222	716800
LATTICE SEMICONDUCTOR LFE3-17EA-6LFN484I	484-FPBGA (23x23)	484-BBGA	17000	2125	-40 C	100 °C	Surface Mount	222	716800
LATTICE SEMICONDUCTOR LFE3-17EA-8MG328I	328-CSBGA	328-LFBGA CSBGA	17000	2125	-40 C	100 °C	Surface Mount	116 I/O	716800	10	10
LATTICE SEMICONDUCTOR LFE3-17EA-7MG328I	328-CSBGA	328-LFBGA CSBGA	17000	2125	-40 C	100 °C	Surface Mount	116 I/O	716800	10	10
LATTICE SEMICONDUCTOR LFE3-17EA-7FTN256C	256-FTBGA (17x17)	256-BGA	17000	2125	0 °C	85 °C	Surface Mount	133	716800
LATTICE SEMICONDUCTOR LFE3-17EA-8LFN484I	484-FPBGA (23x23)	484-BBGA	17000	2125	-40 C	100 °C	Surface Mount	222	716800
LATTICE SEMICONDUCTOR LFE3-17EA-6LFTN256C	256-FTBGA (17x17)	256-BGA	17000	2125	0 °C	85 °C	Surface Mount	133	716800

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	168	$ 36.47
Newark	Each	100	$ 39.27
		250	$ 38.15

General part information

ECP3 Field Programmable Gate Array (FPGA) IC 116 716800 17000 328-LFBGA, CSBGA
