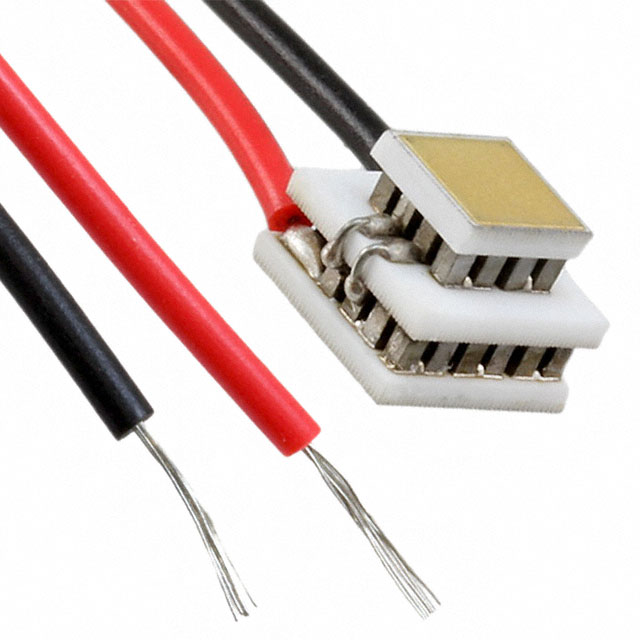

9320004-304
ActiveLaird Thermal Systems, Inc.
PELTIR MS2,024,06,06,11,11,00,W2
Deep-Dive with AI
Search across all available documentation for this part.
9320004-304
ActiveLaird Thermal Systems, Inc.
PELTIR MS2,024,06,06,11,11,00,W2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9320004-304 |
|---|---|
| Current - Max [Max] | 1.1 A |
| Delta Tmax @ Th | 92 °C, 25 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 4.6 mm |
| Number of Stages | 2 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 0.8 W |
| Size / Dimension [x] | 6.1 mm |
| Size / Dimension [y] | 6.1 mm |
| Voltage - Max [Max] | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 167.49 | |
| 5 | $ 157.46 | |||
| 10 | $ 153.45 | |||
| 30 | $ 148.43 | |||
| 50 | $ 144.42 | |||
Description
General part information
9320004 Series
Peltier Module 0.8W @ 25°C 1.1 A 80°C
