3030-14-0103-00

Active

CnC Tech, LLC

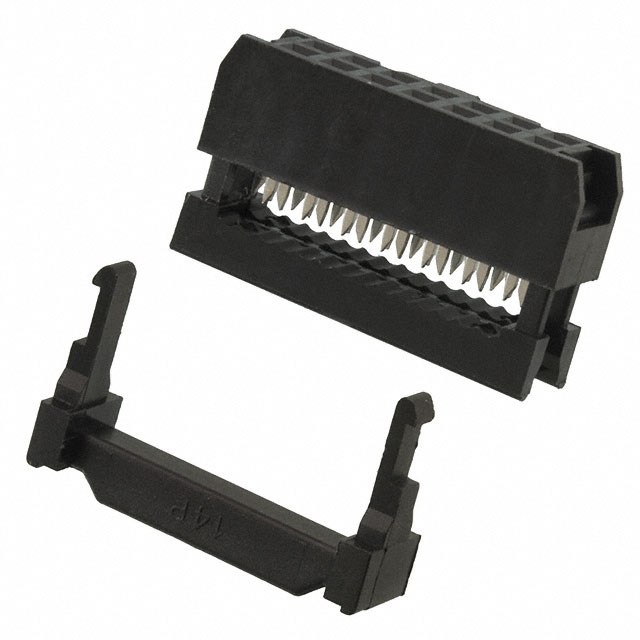

CONN SOCKET 14POS IDC GOLD

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN SOCKET 14POS IDC GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	3030-14-0103-00

Cable Termination	IDC
Connector Type	Socket
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

Part	Pitch [x]	Pitch [x]	Features	Cable Termination	Mounting Type	Contact Finish	Connector Type	Wire Type	Number of Positions	Contact Type	Contact Finish Thickness	Row Spacing [x]	Row Spacing	Number of Rows
CnC Tech, LLC 3030-14-0102-00	2.54 mm	0.1 in	Polarizing Key	IDC	Free Hanging (In-Line)	Gold	Socket	Ribbon Cable	14	Female Socket	Flash	0.1 in	2.54 mm	2
CnC Tech, LLC 3030-14-0103-00	2.54 mm	0.1 in	Feed Through Polarizing Key Strain Relief	IDC	Free Hanging (In-Line)	Gold	Socket	Ribbon Cable	14	Female Socket	Flash	0.1 in	2.54 mm	2
CnC Tech, LLC 3030-14-0101-00	2.54 mm	0.1 in		IDC	Free Hanging (In-Line)	Gold	Receptacle	Ribbon Cable	14	Female Socket	Flash	0.1 in	2.54 mm	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Rectangular Socket Connector IDC Gold
