C0451A.18.10

Active

Prysmian Group

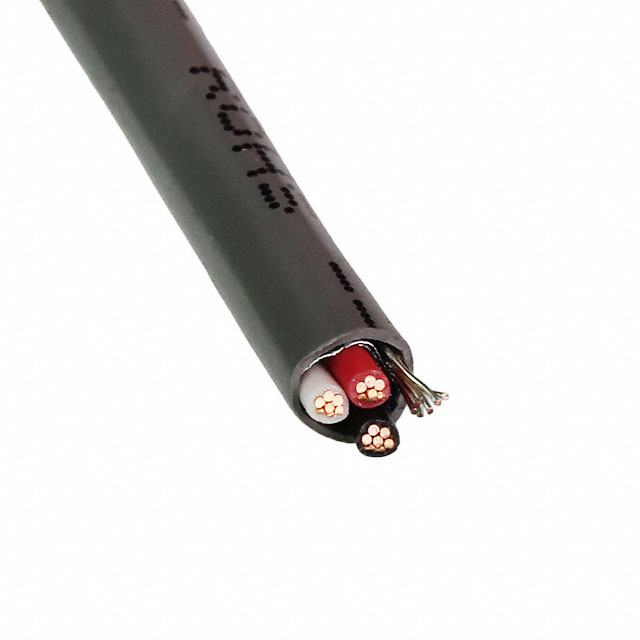

CABLE 3COND 22AWG GRAY SHLD 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 3COND 22AWG GRAY SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C0451A.18.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.06 mm
Jacket (Insulation) Diameter [diameter]	0.199 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Shield Coverage	Number of Conductors	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Insulation	Ratings	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Cable Type	Shield Material	Voltage	Features	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Wire Gauge	Length	Length
Prysmian Group C0451A.18.10	100 %	3	Communication Control	-20 C	105 ░C	Gray	Poly-Vinyl Chloride (PVC)	ASTM B-33	Copper Annealed Tinned	0.94 mm	0.037 in	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Flexfoil®	300 V	Drain Wire	500 '	152.4 m	7	30 AWG	5.06 mm	0.199 in	Foil	22 AWG
Prysmian Group C0451A.41.10	100 %	3	Communication Control	-20 C	105 ░C	Gray	Poly-Vinyl Chloride (PVC)	ASTM B-33	Copper Annealed Tinned	0.94 mm	0.037 in	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Flexfoil®	300 V	Drain Wire	50 ft 100 ft	30.5 m	7	30 AWG	5.06 mm	0.199 in	Foil	22 AWG	1000 ft	15.24 m 304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25000	$ 0.48

General part information

3 Conductor Multi-Conductor Cable Gray 22 AWG Foil 500.0' (152.4m)

Technical documentation and resources

No documents available
