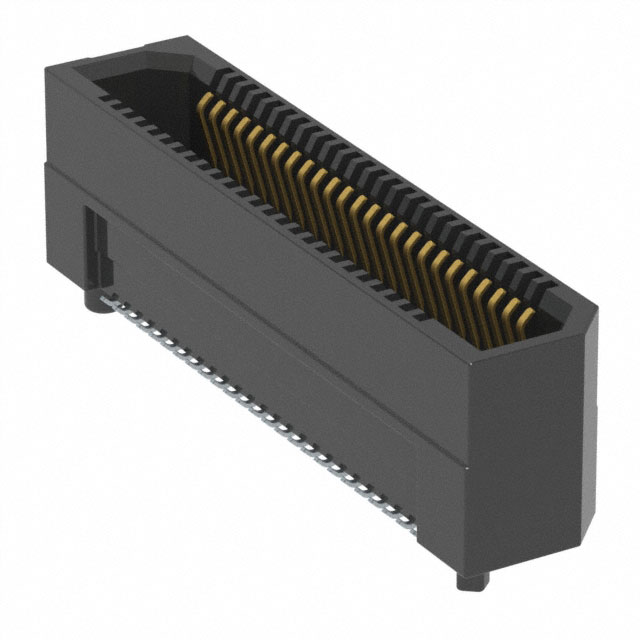

ER8-50S-0.8SV-7H

Active

Hirose Electric USA, Inc.

CONN RCPT 50POS SMD GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ER8-50S-0.8SV-7H

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide
Height Above Board [z]	0.285 in
Height Above Board [z]	7.24 mm
Mated Stacking Heights [z]	12 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Mated Stacking Heights	Connector Type	Features	Height Above Board	Height Above Board	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions	Contact Finish	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights [z]
Hirose Electric USA, Inc. ER8-50S-0.8SV-5H	7 mm 10 mm	Receptacle Outer Shroud Contacts	Board Guide	0.211 in	5.35 mm	Surface Mount	0.8 mm	0.031 in	0.76 Ám	30 Áin	2	50	Gold
Hirose Electric USA, Inc. ER8-50S-0.8SV-7H		Receptacle Outer Shroud Contacts	Board Guide			Surface Mount	0.8 mm	0.031 in	0.76 Ám	30 Áin	2	50	Gold	0.285 in	7.24 mm	9 mm 12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
