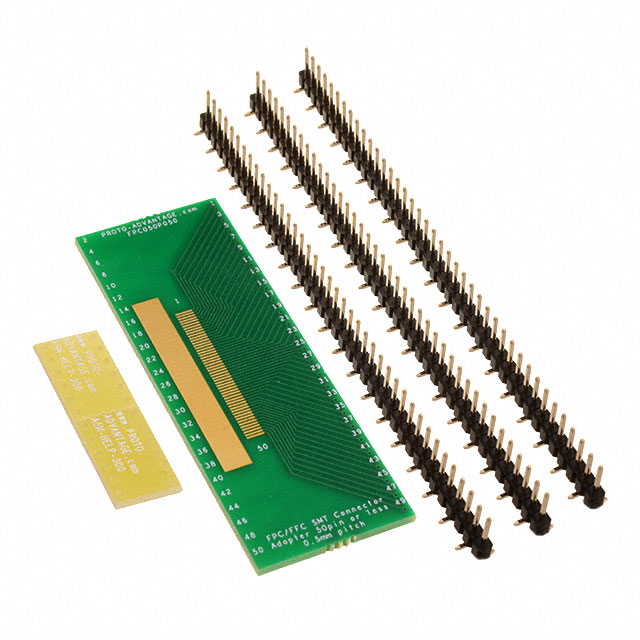

FPC050P050

Active

Chip Quik Inc.

FPC/FFC SMT CONNECTOR 0.5 MM PIT

Search across all available documentation for this part.

Active

Chip Quik Inc.

FPC/FFC SMT CONNECTOR 0.5 MM PIT

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package Accepted	Material	Board Thickness	Board Thickness	Board Thickness	Proto Board Type	Number of Positions	Pitch [x]	Pitch [x]	Thermal Center Pad [y]	Thermal Center Pad [x]	Thermal Center Pad [x]	Thermal Center Pad [y]	Outer Dimension [y]	Outer Dimension [x]	Outer Dimension [y]	Outer Dimension [x]	Thickness	Thickness	Type
Chip Quik Inc. FPC050P050	64.77 mm	0.9 "	2.55 "	22.86 mm	FPC Connector	FR4 Epoxy Glass	0.062 in	0.0625 in	1.57 mm	SMD to DIP	50	0.5 mm	0.02 in
Chip Quik Inc. FPC050P050-S						Stainless Steel					50	0.5 mm	0.02 in	0.157 in	1.291 in	32.8 mm	4 mm	22.86 mm	1.3 in	0.9 "	33.02 mm	0.004 in	0.102 mm	FPC/FFC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.89

General part information

FPC/FFC SMT CONNECTOR 0.5 MM PIT

Technical documentation and resources
