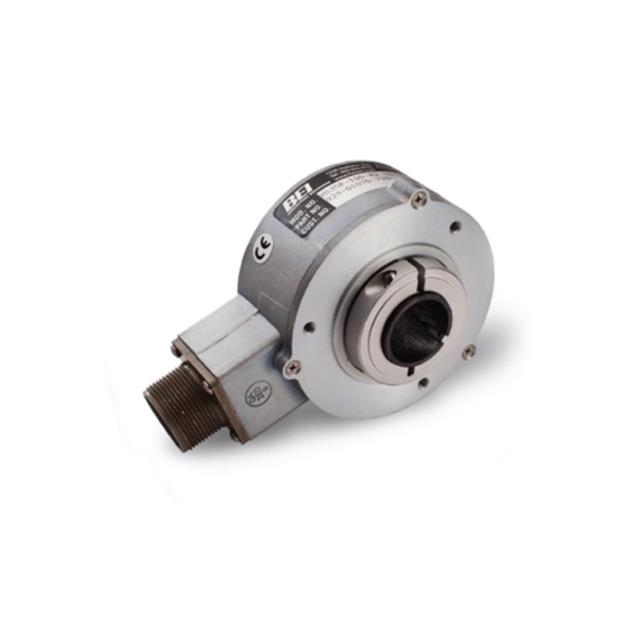

ROTARY ENCODER OPTICAL 4096PPR

Deep-Dive with AI

Search across all available documentation for this part.

01070-581

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 4096PPR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	01070-581

Actuator Type	Hole for Shaft
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	Chassis Mount
Orientation	User Selectable
Output Type	Quadrature with Index (Incremental)
Pulses per Revolution	4096
Rotational Life (Cycles Min) [Min]	7.5B
Termination Style	Connector
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	5 V

01070 Series

Part	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Rotational Life (Cycles Min) [Min]	Encoder Type	Actuator Type	Pulses per Revolution	Mounting Type	Orientation
Sensata-BEI Sensors 01070-581	Quadrature with Index (Incremental)	5 V	28 V	Connector	7.5B	Optical	Hole for Shaft	4096	Chassis Mount	User Selectable
Sensata-BEI Sensors 01070-120	Quadrature with Index (Incremental)	5 V	28 V	Connector	7.5B	Incremental	Hole for Shaft	1024	Servo Mount	User Selectable
Sensata-BEI Sensors 01070-1206	Quadrature with Index (Incremental)	5 V	28 V	Connector	7.5B	Incremental	Hole for Shaft	1024	Chassis Mount	User Selectable
Sensata-BEI Sensors 01070-273	Quadrature with Index (Incremental)	5 V	28 V	Connector	7.5B	Optical	Hole for Shaft	360	Chassis Mount	User Selectable
Sensata-BEI Sensors 01070-1272	Quadrature (Incremental)	5 V	28 V	Connector	7.5B	Optical	Hole for Shaft	1024	Chassis Mount	User Selectable
Sensata-BEI Sensors 01070-920	Quadrature with Index (Incremental)	5 V	28 V	Connector	7.5B	Optical	Hole for Shaft	1024	Chassis Mount Motors	User Selectable
Sensata-BEI Sensors 01070-400	Quadrature with Index (Incremental)	5 V	28 V	Connector	7.5B	Optical	Hole for Shaft	2048	Chassis Mount	User Selectable
Sensata-BEI Sensors 01070-1334	Quadrature with Index (Incremental)	5 V	28 V	Connector	7.5B	Optical	Hole for Shaft	500	Chassis Mount Motors	User Selectable
Sensata-BEI Sensors 01070-1601	Quadrature with Index (Incremental)	5 V	28 V	Connector	7.5B	Optical	Hole for Shaft	500	Chassis Mount Motors	User Selectable
Sensata-BEI Sensors 01070-1081	Quadrature with Index (Incremental)	5 V	28 V	Connector	7.5B	Incremental	Hole for Shaft	1024	Chassis Mount	User Selectable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 939.08
		5	$ 920.29
		10	$ 880.39

Description

General part information

01070 Series

ROTARY ENCODER OPTICAL 4096PPR

Documents

Technical documentation and resources

No documents available
