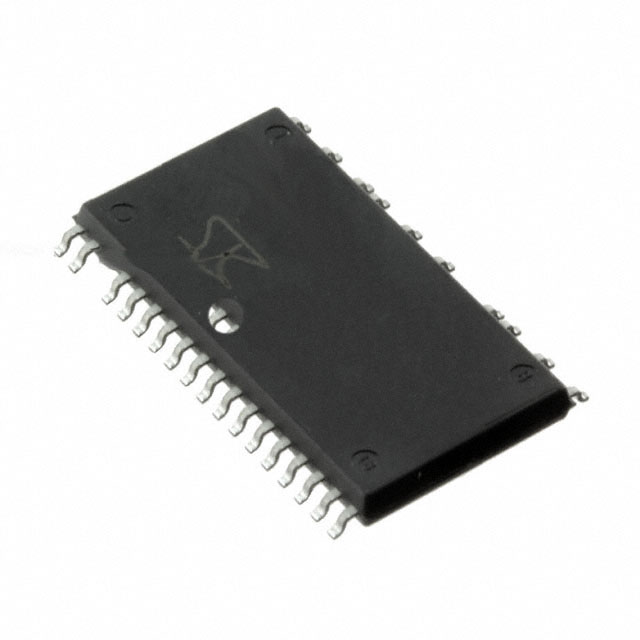

SX68002MH

Obsolete

Sanken Electric USA Inc.

IC MOTOR DRVR 13.5V-16.5V 27SOP

Search across all available documentation for this part.

Obsolete

Sanken Electric USA Inc.

IC MOTOR DRVR 13.5V-16.5V 27SOP

Technical Specifications

Parameters and characteristics for this part

Specification	SX68002MH

Applications	Appliance
Current - Output	1.5 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - AC, DC	Brushless DC (BLDC)
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 °C
Output Configuration	Half Bridge (3)
Package / Case	36-SOP
Package / Case	27 Leads
Package / Case [custom]	0.449 in
Package / Case [custom]	11.4 mm
Supplier Device Package	27-SOP
Technology	Power MOSFET
Voltage - Load	400 V
Voltage - Supply [Max]	16.5 V
Voltage - Supply [Min]	13.5 V

Part	Technology	Package / Case [custom]	Package / Case	Package / Case [custom]	Package / Case	Mounting Type	Output Configuration	Function	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Output	Motor Type - AC, DC	Supplier Device Package	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load
Sanken Electric USA Inc. SX68002MH	Power MOSFET	0.449 in	36-SOP	11.4 mm	27 Leads	Surface Mount	Half Bridge (3)	Driver - Fully Integrated Control and Power Stage	Parallel	13.5 V	16.5 V	1.5 A	Brushless DC (BLDC)	27-SOP	Appliance	150 °C	-20 °C	400 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Motor Driver Power MOSFET Parallel 27-SOP
