M80-8991705

Active

Harwin Inc.

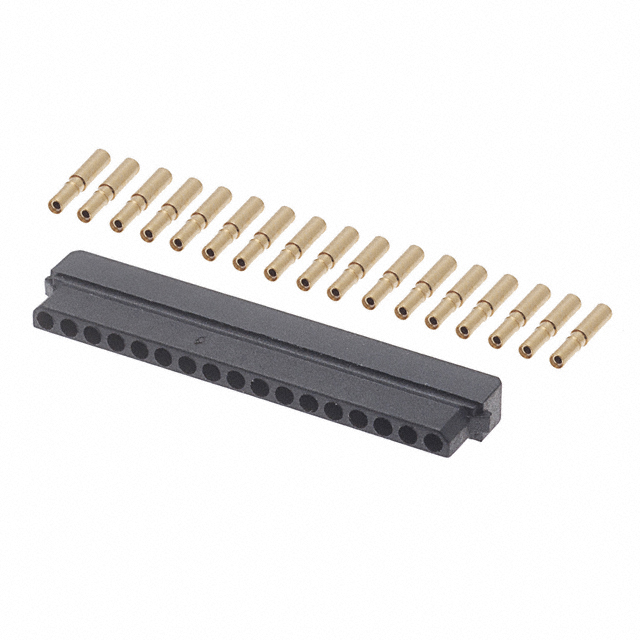

WIRE-TO-BOARD CONNECTOR, DATAMATE L-TEK M80 SERIES, RECEPTACLE, 17, 2 MM, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

WIRE-TO-BOARD CONNECTOR, DATAMATE L-TEK M80 SERIES, RECEPTACLE, 17, 2 MM, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Connector Type	Contact Type	Fastening Type	Wire Gauge	Contact Finish	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Color	Pitch [x]	Pitch [x]	Wire Type
Harwin Inc. M80-8990405	Crimp	Receptacle	Female Socket	Locking Ramp	22 AWG	Gold	Free Hanging (In-Line)	4	0.3 Ám	11.8 Áin	1	Black	0.079 in	2 mm	Discrete
Harwin Inc. M80-8991701	Crimp	Receptacle	Female Socket	Locking Ramp	22 AWG	Gold	Free Hanging (In-Line)		0.3 Ám	11.8 Áin	1	Black	0.079 in	2 mm	Discrete
Harwin Inc. M80-8990505	Crimp	Receptacle	Female Socket	Locking Ramp	22 AWG	Gold	Free Hanging (In-Line)		0.3 Ám	11.8 Áin	1	Black	0.079 in	2 mm	Discrete
Harwin Inc. M80-8991705	Crimp	Receptacle	Female Socket	Locking Ramp	22 AWG	Gold	Free Hanging (In-Line)		0.3 Ám	11.8 Áin	1	Black	0.079 in	2 mm	Discrete
Harwin Inc. M80-8990205	Crimp	Receptacle	Female Socket	Locking Ramp	22 AWG	Gold	Free Hanging (In-Line)	2	0.3 Ám	11.8 Áin	1	Black	0.079 in	2 mm	Discrete

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17 Position Rectangular Receptacle Connector Crimp Gold 22 AWG
