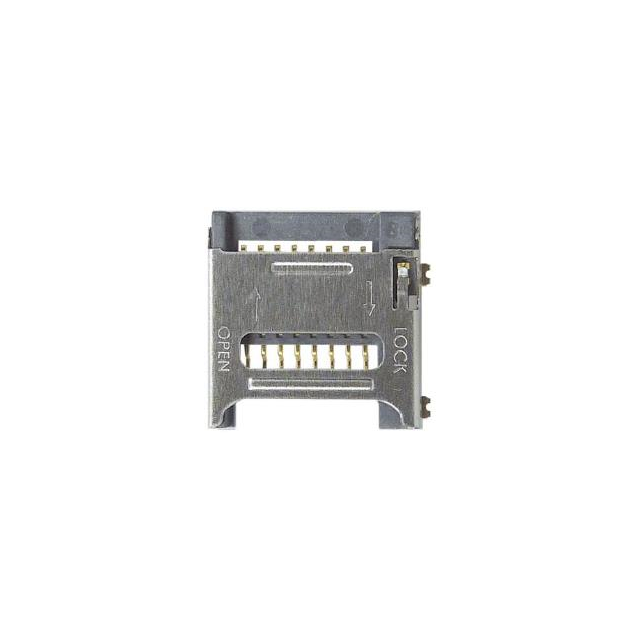

PJS008U-0002
ActiveYamaichi Electronics
CONN MICRO SD CARD SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJS008U-0002
ActiveYamaichi Electronics
CONN MICRO SD CARD SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJS008U-0002 |
|---|---|
| Card Type | Secure Digital - microSD™ |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold-Nickel |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Height Above Board [z] | 0.069 in |
| Height Above Board [z] | 1.75 mm |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 1.54 | |
| 5 | $ 1.48 | |||
| 10 | $ 1.38 | |||
| 25 | $ 1.25 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.11 | |||
| 200 | $ 1.00 | |||
| 500 | $ 0.89 | |||
| 1200 | $ 0.85 | |||
Description
General part information
PJS008 Series
8 Position Card Connector Secure Digital - microSD™ Surface Mount Gold-Nickel
