345-047-540-658
ActiveEDAC Inc.

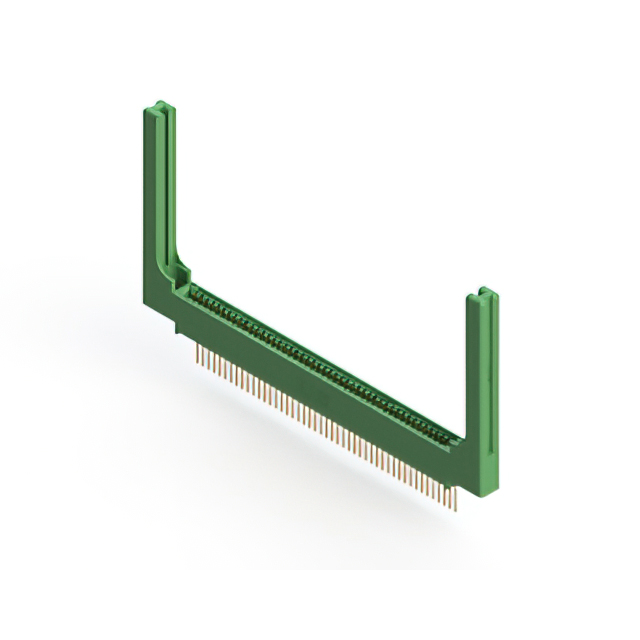

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 47 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-047-540-658
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 47 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-047-540-658 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 47 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
345-047 Series
...
| Part | Mounting Type | Card Type | Material - Insulation | Contact Finish | Color | Contact Type | Pitch [x] | Pitch [x] | Contact Material | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Number of Rows | Read Out | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Features | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | Non Specified - Single Edge | Polyester Thermoplastic | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Copper Alloy | 47 | 3.25 mm | 0.128 in | 1 | -40 °C | 105 ░C | Female | 1 | Single | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Through Hole | Non Specified - Single Edge | Polyester Thermoplastic | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Copper Alloy | 47 | 1 | -40 °C | 105 ░C | Female | 1 | Single | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | Through Hole Right Angle | Non Specified - Single Edge | Polyester Thermoplastic | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Copper Alloy | 47 | 1 | -40 °C | 105 ░C | Female | 1 | Single | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | Through Hole | Non Specified - Single Edge | Polyester Thermoplastic | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Copper Alloy | 47 | 1 | -40 °C | 105 ░C | Female | 1 | Single | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in | |||
EDAC Inc. | Through Hole | Non Specified - Single Edge | Polyester Thermoplastic | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Copper Alloy | 47 | 1 | -40 °C | 105 ░C | Female | 1 | Single | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Through Hole | Non Specified - Single Edge | Polyester Thermoplastic | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Copper Alloy | 47 | 1 | -40 °C | 105 ░C | Female | 1 | Single | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | Through Hole Right Angle | Non Specified - Single Edge | Polyester Thermoplastic | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Copper Alloy | 47 | 1 | -40 °C | 105 ░C | Female | 1 | Single | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | ||||
EDAC Inc. | Through Hole Right Angle | Non Specified - Single Edge | Polyester Thermoplastic | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Copper Alloy | 47 | 1 | -40 °C | 105 ░C | Female | 1 | Single | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Through Hole | Non Specified - Single Edge | Polyester Thermoplastic | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Copper Alloy | 47 | 1 | -40 °C | 105 ░C | Female | 1 | Single | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |||
EDAC Inc. | Through Hole | Non Specified - Single Edge | Polyester Thermoplastic | Gold | Green | Cantilever | 2.54 mm | 0.1 in | Copper Alloy | 47 | 1 | -40 °C | 105 ░C | Female | 1 | Single | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Top Mount Opening Unthreaded | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-047 Series
47 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
