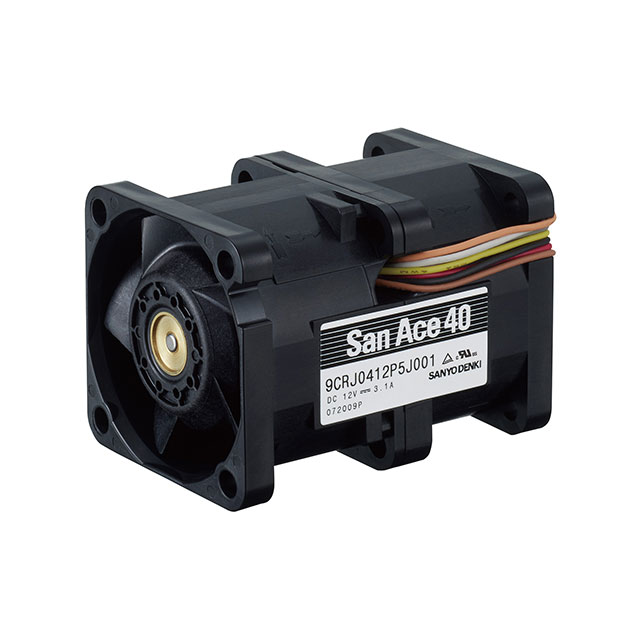

9CRJ0412P5J001
ActiveSanyo Denki America Inc.
FAN AXIAL DUAL 40X56MM 12VDC
Deep-Dive with AI
Search across all available documentation for this part.
9CRJ0412P5J001
ActiveSanyo Denki America Inc.
FAN AXIAL DUAL 40X56MM 12VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9CRJ0412P5J001 |
|---|---|
| Air Flow | 1.05 m³/min |
| Air Flow | 37.4 CFM |
| Bearing Type | Ball |
| Current Rating (Amps) | 3.1 A |
| Fan Type | Tubeaxial (Dual) |
| Lifetime @ Temp. | 30000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 72 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 37.2 W |
| RPM [custom] | 36200 RPM |
| RPM [custom] | 3200 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 9.64 in H2O |
| Static Pressure | 2401.2 Pa |
| Termination | 4 Wire Leads per Fan |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 12.6 VDC |
| Voltage Range [Min] | 10.8 VDC |
| Weight | 0.243 lb |
| Weight | 110.22 g |
| Width [x] | 56 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 63.78 | |
| 10 | $ 56.86 | |||
| 25 | $ 54.32 | |||
| 84 | $ 51.13 | |||
| 168 | $ 49.39 | |||
Description
General part information
9CRJ0412 Series
Fan Tubeaxial (Dual) 12VDC Square - 40mm L x 40mm H Ball 37.4 CFM (1.05m³/min) 4 Wire Leads per Fan
