Q-040680003006i

Active

Amphenol Custom Cable

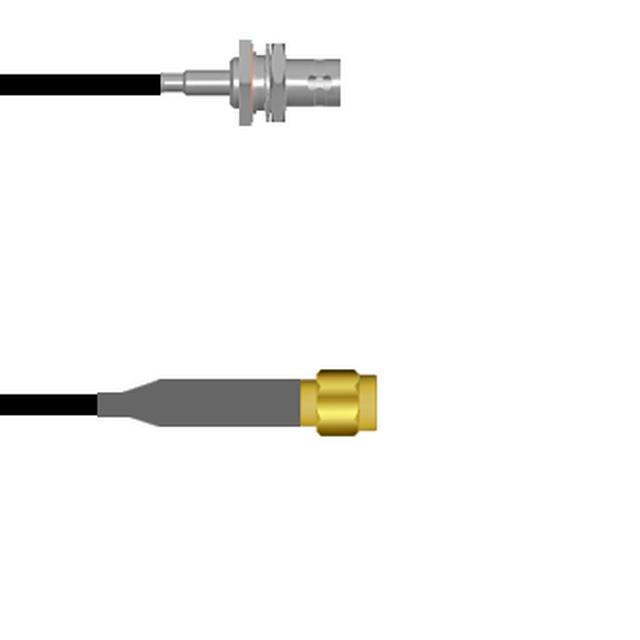

CBL ASSY RPSMA-BNC PLUG-JACK 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-040680003006i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-BNC PLUG-JACK 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-040680003006i

1st Connector	RP-SMA Plug
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	BNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	RP-SMA to BNC

Q-040680 Series

Part	Features	1st Connector	Cable Type	1st Connector Mounting Feature	Color	Style	Length [x]	Length [x]	1st Connector Mounting Type	Frequency - Max [Max]	2nd Connector	2nd Connector Mounting Type	1st Contact Gender	Overall Impedance	2nd Contact Gender	Length	Length	Length	Length [x]
Amphenol Custom Cable Q-040680003018i	Shielded	RP-SMA Plug	RG-174	Bulkhead - Front Side Nut	Black	RP-SMA to BNC	457.2 mm	457.2 mm	Panel Mount	4 GHz	BNC Jack	Free Hanging (In-Line)	Female	50 Ohms	Female
Amphenol Custom Cable Q-040680005001M	Shielded	RP-SMA Plug	RG-316	Bulkhead - Front Side Nut	Copper	RP-SMA to BNC			Panel Mount	4 GHz	BNC Jack	Free Hanging (In-Line)	Female	50 Ohms	Female	1 m	3.3 ft	39.4 in
Amphenol Custom Cable Q-040680005.75M	Shielded	RP-SMA Plug	RG-316	Bulkhead - Front Side Nut	Copper	RP-SMA to BNC			Panel Mount	4 GHz	BNC Jack	Free Hanging (In-Line)	Female	50 Ohms	Female	750 mm		29.53 "
Amphenol Custom Cable Q-040680005003M	Shielded	RP-SMA Plug	RG-316	Bulkhead - Front Side Nut	Copper	RP-SMA to BNC			Panel Mount	4 GHz	BNC Jack	Free Hanging (In-Line)	Female	50 Ohms	Female	3 m	9.8 '	118.1 in
Amphenol Custom Cable Q-040680003024i	Shielded	RP-SMA Plug	RG-174	Bulkhead - Front Side Nut	Black	RP-SMA to BNC			Panel Mount	4 GHz	BNC Jack	Free Hanging (In-Line)	Female	50 Ohms	Female	609.6 mm		24 "
Amphenol Custom Cable Q-040680005084i	Shielded	RP-SMA Plug	RG-316	Bulkhead - Front Side Nut	Copper	RP-SMA to BNC			Panel Mount	4 GHz	BNC Jack	Free Hanging (In-Line)	Female	50 Ohms	Female	2.1 m	7 ft	84 in
Amphenol Custom Cable Q-040680003.25M	Shielded	RP-SMA Plug	RG-174	Bulkhead - Front Side Nut	Black	RP-SMA to BNC		250 mm	Panel Mount	4 GHz	BNC Jack	Free Hanging (In-Line)	Female	50 Ohms	Female				9.843 "
Amphenol Custom Cable Q-040680003006i	Shielded	RP-SMA Plug	RG-174	Bulkhead - Front Side Nut	Black	RP-SMA to BNC			Panel Mount	4 GHz	BNC Jack	Free Hanging (In-Line)	Female	50 Ohms	Female	152.4 mm		6 in
Amphenol Custom Cable Q-040680003009i	Shielded	RP-SMA Plug	RG-174	Bulkhead - Front Side Nut	Black	RP-SMA to BNC			Panel Mount	4 GHz	BNC Jack	Free Hanging (In-Line)	Female	50 Ohms	Female	228.6 mm		9 "
Amphenol Custom Cable Q-040680003.75M	Shielded	RP-SMA Plug	RG-174	Bulkhead - Front Side Nut	Black	RP-SMA to BNC			Panel Mount	4 GHz	BNC Jack	Free Hanging (In-Line)	Female	50 Ohms	Female	750 mm		29.53 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 58.40
		25	$ 57.26
		50	$ 56.12
		100	$ 54.99
		250	$ 53.85

Description

General part information

Q-040680 Series

Cable Assembly Coaxial RP-SMA to BNC RG-174 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
