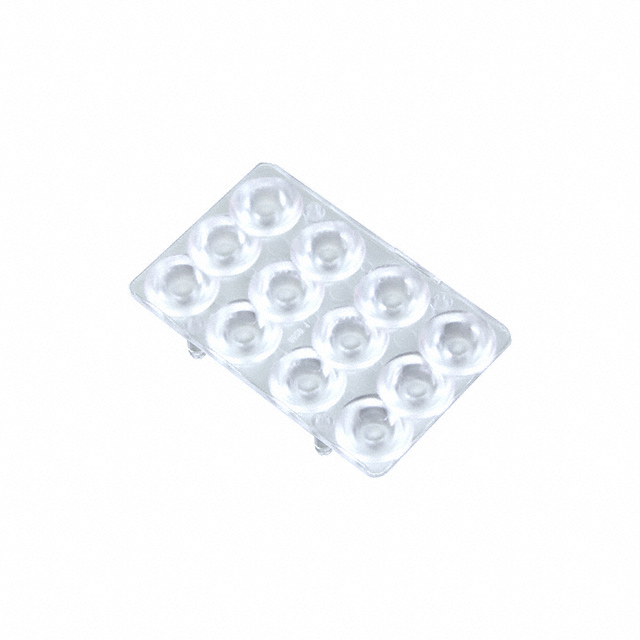

C16520_PETUNIA2

Active

LEDiL

LENS ARRAY RECTANG 12 POS 29,5+46,5MM (D/ TRAY ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LEDiL

LENS ARRAY RECTANG 12 POS 29,5+46,5MM (D/ TRAY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	C16520_PETUNIA2

Color	Clear
For Use With/Related Manufacturer	Osram, Lumileds, Cree, Nichia
Lens Size [x]	46.5 mm
Lens Size [y]	29.5 mm
Lens Style	Rectangle with Multiple Top
Material	Acrylic
Mounting Type	Snap-In
Number of LEDs	12
Optical Pattern	Medium
Type	Lens
Viewing Angle [Max]	31 °
Viewing Angle [Min]	22 °

Part	Mounting Type	Color	For Use With/Related Manufacturer	Type	Number of LEDs	Lens Style	Viewing Angle [Max]	Viewing Angle [Min]	Material	Optical Pattern	Lens Size [y]	Lens Size [x]
LEDiL C16520_PETUNIA2	Snap-In	Clear	Cree Lumileds Nichia Osram	Lens	12	Rectangle with Multiple Top	31 °	22 °	Acrylic	Medium	29.5 mm	46.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens Clear 22° ~ 31° Medium Snap-In
