SIT9501AI-02P3-2510-156.250000E

Active

SiTime

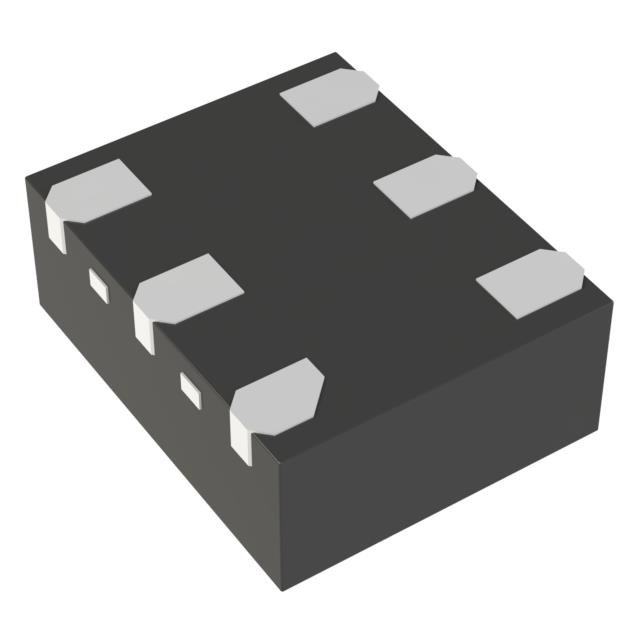

MEMS OSC XO 156.25MHZ LVDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SIT9501AI-02P3-2510-156.250000E

Active

SiTime

MEMS OSC XO 156.25MHZ LVDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SIT9501AI-02P3-2510-156.250000E

Base Resonator	MEMS
Current - Supply (Max) [Max]	32 mA
Frequency	156.25 MHz
Frequency Stability	50 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVDS
Package / Case	6-SMD, No Lead
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	6-PQFN (2x1.6)
Type	XO (Standard)
Voltage - Supply	2.5 V

SIT9501 Series

...

Part	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Supplier Device Package	Function	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Output	Voltage - Supply	Current - Supply (Max) [Max]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency Stability	Base Resonator
SiTime SIT9501AI-02B1-2510-100.000000E	100 MHz	85 °C	-40 °C	Surface Mount	XO (Standard)	6-PQFD (3.2x2.5)	Enable/Disable	3.2 mm	2.5 mm	0.126 in	0.098 in	LVDS	2.5 V	32 mA	6-SMD No Lead	0.035 "	0.9 mm	20 ppm	MEMS
SiTime SIT9501AE-04P1-3310-644.531250E	644.53125 MHz	105 ░C	-40 °C	Surface Mount	XO (Standard)	6-PQFN (2x1.6)	Enable/Disable	2 mm	1.6 mm	0.079 in	0.063 in	HCSL	3.3 V	31 mA	6-SMD No Lead	0.031 "	0.8 mm	20 ppm	MEMS
SiTime SIT9501AI-02P3-2510-156.250000E	156.25 MHz	85 °C	-40 °C	Surface Mount	XO (Standard)	6-PQFN (2x1.6)	Enable/Disable	2 mm	1.6 mm	0.079 in	0.063 in	LVDS	2.5 V	32 mA	6-SMD No Lead	0.031 "	0.8 mm	50 ppm	MEMS
SiTime SIT9501AI-01B3-3310-312.500000E	312.5 MHz	85 °C	-40 °C	Surface Mount	XO (Standard)		Enable/Disable	3.2 mm	2.5 mm	0.126 in	0.098 in	LVPECL	3.3 V	35.5 mA	6-SMD No Lead	0.035 "	0.9 mm	50 ppm	MEMS
SiTime SIT9501AE-02P3-1810-125.000000E	125 MHz	105 ░C	-40 °C	Surface Mount	XO (Standard)	6-PQFN (2x1.6)	Enable/Disable	2 mm	1.6 mm	0.079 in	0.063 in	LVDS	1.8 V	32 mA	6-SMD No Lead	0.031 "	0.8 mm	50 ppm	MEMS
SiTime SIT9501AI-01P3-3310-333.330000E	333.33 MHz	85 °C	-40 °C	Surface Mount	XO (Standard)	6-PQFN (2x1.6)	Enable/Disable	2 mm	1.6 mm	0.079 in	0.063 in	LVPECL	3.3 V	35.5 mA	6-SMD No Lead	0.031 "	0.8 mm	50 ppm	MEMS
SiTime SIT9501AI-01B3-3310-156.250000	156.25 MHz	85 °C	-40 °C	Surface Mount	XO (Standard)		Enable/Disable	3.2 mm	2.5 mm	0.126 in	0.098 in	LVPECL	3.3 V	35.5 mA	6-SMD No Lead	0.035 "	0.9 mm	50 ppm	MEMS
SiTime SIT9501AI-01P3-3310-156.250000E	156.25 MHz	85 °C	-40 °C	Surface Mount	XO (Standard)	6-PQFN (2x1.6)	Enable/Disable	2 mm	1.6 mm	0.079 in	0.063 in	LVPECL	3.3 V	35.5 mA	6-SMD No Lead	0.031 "	0.8 mm	50 ppm	MEMS
SiTime SIT9501AI-02A3-3310-50.000000E	50 MHz	85 °C	-40 °C	Surface Mount	XO (Standard)	6-PQFW (2.5x2)	Enable/Disable	2.5 mm	2 mm	0.098 "	0.079 in	LVDS	3.3 V	32 mA	6-SMD No Lead	0.035 "	0.9 mm	50 ppm	MEMS
SiTime SIT9501AI-02A1-3310-100.000000E	100 MHz	85 °C	-40 °C	Surface Mount	XO (Standard)		Enable/Disable	2.5 mm	2 mm	0.098 "	0.079 in	LVDS	3.3 V	32 mA	6-SMD No Lead	0.035 "	0.9 mm	20 ppm	MEMS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 5.00

Description

General part information

SIT9501 Series

156.25 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead
