430885-601
Laird Thermal Systems, Inc.
PELTIER UT9,28,F2,4040,TA,W6
Deep-Dive with AI
Search across all available documentation for this part.
430885-601
Laird Thermal Systems, Inc.
PELTIER UT9,28,F2,4040,TA,W6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430885-601 |
|---|---|
| Current - Max [Max] | 9.2 A |
| Delta Tmax @ Th | 68 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 2.79 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 206 W |
| Size / Dimension | Rectangular |
| Size / Dimension [x] | 44 mm |
| Size / Dimension [y] | 40 mm |
| Voltage - Max [Max] | 36.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 61.12 | |
Description
General part information
430885 Series

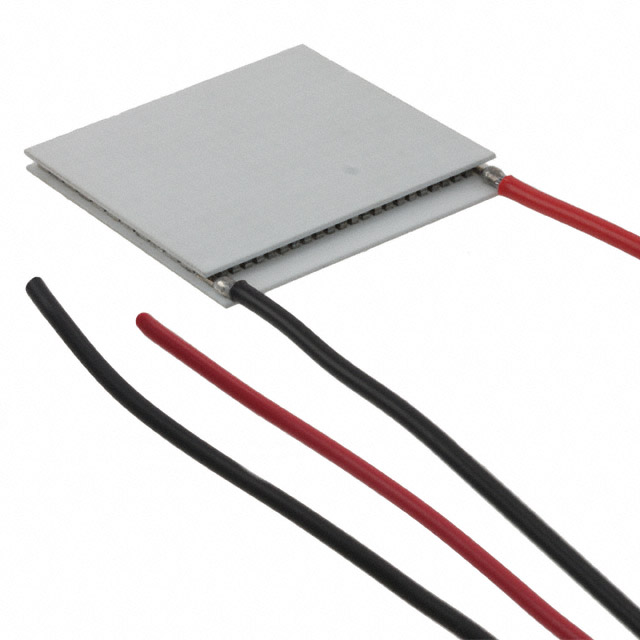

Peltier Module 206.0W @ 25°C 9.2 A 80°C
Documents
Technical documentation and resources
