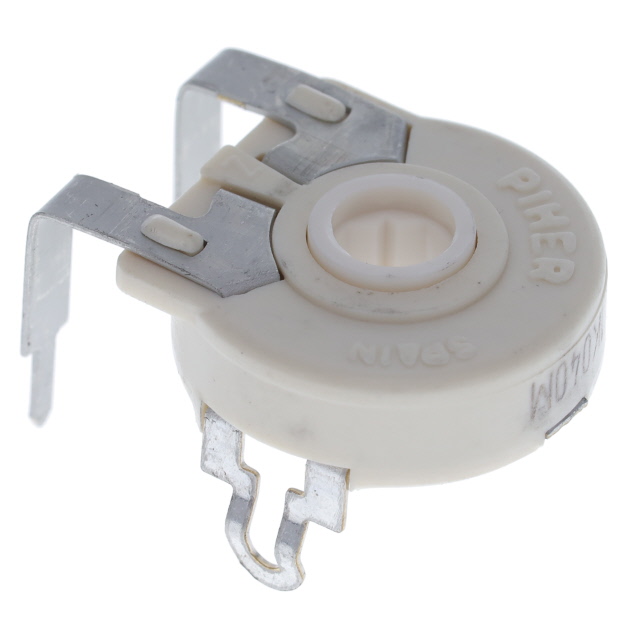

PTC15NV18-102A2020
ActiveAmphenol Piher Sensing Systems
TRIMMER 1K OHM 0.5W PC PIN TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PTC15NV18-102A2020
ActiveAmphenol Piher Sensing Systems
TRIMMER 1K OHM 0.5W PC PIN TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PTC15NV18-102A2020 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance | 1000 Ohms |
| Resistive Material | Cermet |
| Size / Dimension [diameter] | 15 mm |
| Size / Dimension [diameter] | 0.591 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.07 | |
| 10 | $ 1.66 | |||
| 25 | $ 1.52 | |||
| 50 | $ 1.42 | |||
| 100 | $ 1.33 | |||
| 250 | $ 1.22 | |||
| 500 | $ 1.14 | |||
| 1000 | $ 1.08 | |||
Description
General part information
PTC15NV18 Series
1 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Documents
Technical documentation and resources
