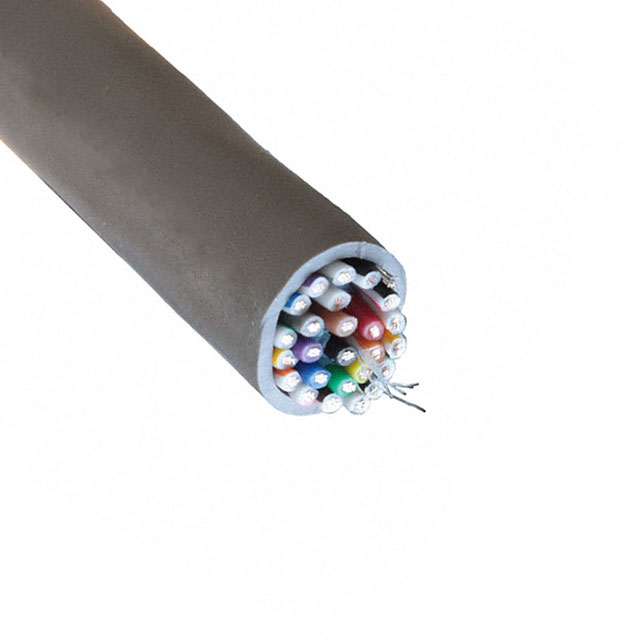

M4646 SL002

Active

ALPHA WIRE

CABLE 25COND 22AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 25COND 22AWG SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	M4646 SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.371 in
Jacket (Insulation) Diameter [diameter]	9.42 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	25
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Material	Shield Coverage	Jacket Color	Features	Ratings	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Number of Conductors	Jacket (Insulation) Material	Shield Material	Cable Type	Shield Type	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Voltage
ALPHA WIRE M4646 SL002	Copper Tinned	100 %	Slate	Drain Wire Rip Cord	UL Style 2464	Poly-Vinyl Chloride (PVC)	28	7	0.371 in	9.42 mm	500 '	152.4 m	25	Poly-Vinyl Chloride (PVC)	Aluminum	Multi-Conductor	Foil	22 AWG	-20 C	80 C	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.21
Newark	Spool of 500	1	$ 2387.73

General part information

25 Conductor Multi-Conductor Cable Slate 22 AWG Foil 500.0' (152.4m)
