DML-12-A-H-T-A-TSMT-T/R

Unknown

Adam Tech

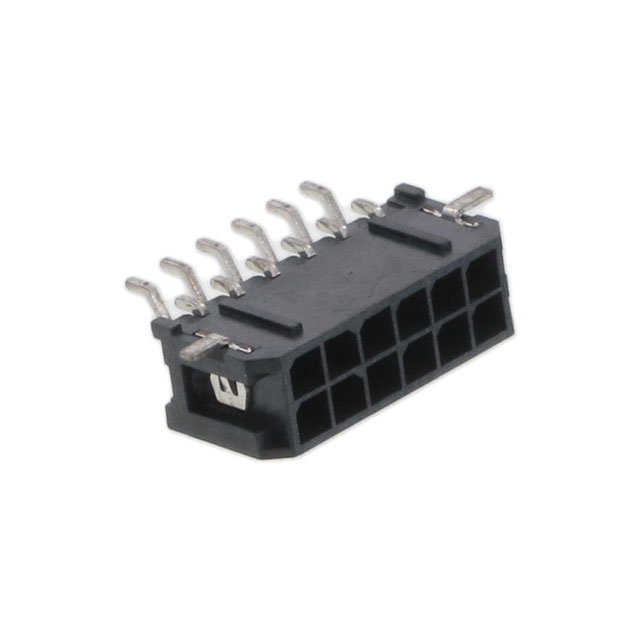

CONN HEADER SMD R/A 12POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

DML-12-A-H-T-A-TSMT-T/R

Unknown

Adam Tech

CONN HEADER SMD R/A 12POS 3MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DML-12-A-H-T-A-TSMT-T/R

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.289 "
Insulation Height	7.34 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

DML-12 Series

Part	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Voltage Rating	Mounting Type	Material Flammability Rating	Connector Type	Pitch - Mating	Pitch - Mating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Termination	Fastening Type	Style	Shrouding	Contact Shape	Insulation Material	Number of Positions	Number of Rows	Insulation Color	Contact Material	Number of Positions Loaded	Current Rating (Amps)	Features	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)
Adam Tech DML-12-A-V-T-SMT-BL-PP-T/R	3 mm	0.118 in	Tin	250 VAC	Surface Mount	UL94 V-0	Header	0.118 in	3 mm	Male Pin	-25 °C	85 °C	9.91 mm	0.39 in	Solder	Locking Ramp	Board to Cable/Wire	Shrouded - 4 Wall	Square	Thermoplastic	12	2	Black	Brass	All	5 A
Adam Tech DML-12-A-V-T-TSMT-T/R	3 mm	0.118 in	Tin	250 VAC	Surface Mount	UL94 V-0	Header	0.118 in	3 mm	Male Pin	-25 °C	105 ░C	9.91 mm	0.39 in	Solder	Locking Ramp	Board to Cable/Wire	Shrouded - 4 Wall	Square	Thermoplastic	12	2	Black	Brass	All	5 A	Solder Retention
Adam Tech DML-12-A-H-T-A-TSMT-T/R	3 mm	0.118 in	Tin	250 VAC	Surface Mount Right Angle	UL94 V-0	Header	0.118 in	3 mm	Male Pin	-25 °C	85 °C			Solder	Locking Ramp	Board to Cable/Wire	Shrouded - 4 Wall	Square	Thermoplastic	12	2	Natural	Brass	All	5 A	Solder Retention	0.289 "	7.34 mm
Adam Tech DML-12-A-H-T-A	3 mm	0.118 in	Tin	250 VDC	Through Hole Right Angle	UL94 V-0	Header	0.118 in	3 mm	Male Pin					Solder	Locking Ramp	Board to Cable/Wire	Shrouded - 4 Wall	Square	Thermoplastic	12	2	Black	Brass	All			0.27 "	6.86 mm	3.18 mm	0.125 in	Varies by Wire Gauge
Adam Tech DML-12-A-V-T-A	3 mm	0.118 in	Tin	250 VDC	Through Hole	UL94 V-0	Header	0.118 in	3 mm	Male Pin	-45 °C	125 °C	9.91 mm	0.39 in	Kinked Pin Solder	Locking Ramp	Board to Cable/Wire	Shrouded - 4 Wall	Square	Thermoplastic	12	2	Black	Brass	All		Board Guide			3.18 mm	0.125 in	Varies by Wire Gauge
