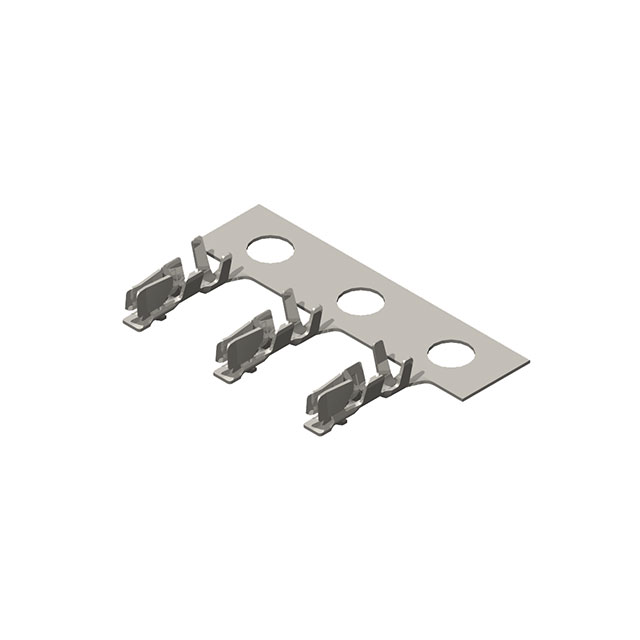

CI11T011PP0
ActiveCvilux USA
1.0MM(.039) WIRE TO BOARD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
CI11T011PP0
ActiveCvilux USA
1.0MM(.039) WIRE TO BOARD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CI11T011PP0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 80 Áin |
| Contact Finish Thickness | 2.03 Ám |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge [Max] | 32 AWG |
| Wire Gauge [Min] | 27.5 AWG |
CI11T011 Series
| Part | Type | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Pin or Socket | Contact Finish Thickness | Contact Finish Thickness | Contact Termination |
|---|---|---|---|---|---|---|---|---|
Cvilux USA | Stamped | 32 AWG | 27.5 AWG | Tin | Socket | 80 Áin | 2.03 Ám | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.02 | |||
| 25 | $ 0.02 | |||
| 50 | $ 0.01 | |||
| 100 | $ 0.01 | |||
| 250 | $ 0.01 | |||
| 500 | $ 0.01 | |||
| 1000 | $ 0.01 | |||
| 2500 | $ 0.01 | |||
| Tape & Reel (TR) | 16000 | $ 0.01 | ||
| 32000 | $ 0.01 | |||
| 48000 | $ 0.01 | |||
Description
General part information
CI11T011 Series
Socket Contact Tin 28-32 AWG Crimp Stamped
Documents
Technical documentation and resources
No documents available
