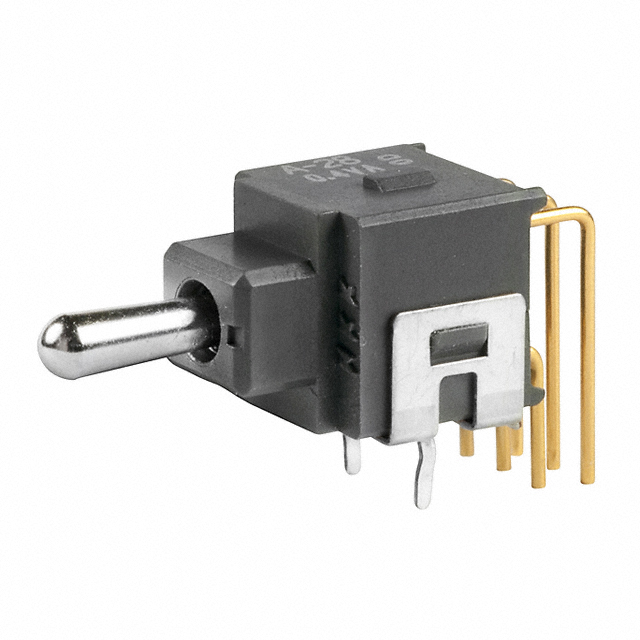

A28JH/328

Active

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	A28JH/328

Actuator Length [x]	6.3 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Standard Round
Bushing Thread	Unthreaded, Square
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Low Temperature Lubricant
Illumination	Non-Illuminated
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Illumination	Circuit	Electrical Life	Voltage Rating - AC	Features	Termination Style	Mounting Type	Actuator Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Voltage Rating - DC	Bushing Thread	Current Rating (Amps)	Actuator Material	Switch Function
NKK Switches A28JH/328	Non-Illuminated	DPDT	50000 Cycles	28 V	Low Temperature Lubricant	PC Pin	Through Hole Right Angle	6.3 mm	-30 ░C	85 °C	Standard Round	28 V	Unthreaded Square	0.4 VA	Glass Filled Nylon Polyamide (PA)	Mom-Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 5.12

General part information

Toggle Switch DPDT Through Hole, Right Angle
