FPM12A04I12AF01

Active

MH Connectors

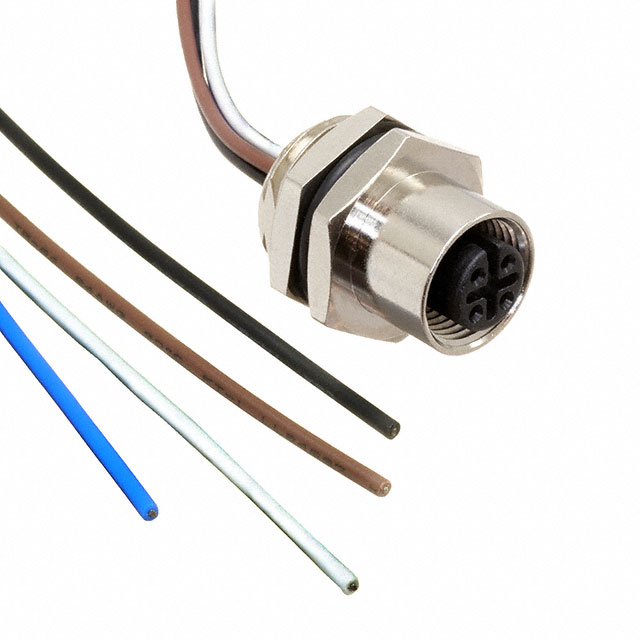

SENSOR CORD, M12 RCPT-FREE END, 304.8MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +2

FPM12A04I12AF01

Active

MH Connectors

SENSOR CORD, M12 RCPT-FREE END, 304.8MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Drawing EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FPM12A04I12AF01

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Panel Mount
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Type	Individual
Color	Multiple
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Length	1 ft
Length	304.8 mm
Shielding	Unshielded
Usage	Industrial Environments

FPM12A0 Series

Part	Assembly Configuration	Color	Cable Type	1st Connector Number of Positions Loaded	Length	Length	Ingress Protection	1st Connector Shell Size - Insert	1st Connector Gender	1st Connector Type	Shielding	Usage	1st Connector Mounting Type	1st Connector Orientation [custom]	2nd Connector Type	1st Connector Number of Positions
MH Connectors FPM12A05I12AF02	Standard	Multiple	Individual	All	1 ft	304.8 mm	IP67/IP68 - Dust Tight Waterproof	M12	Female Sockets	Plug	Unshielded	Industrial Environments	Panel Mount	Keyed	Wire Leads	5
MH Connectors FPM12A04I12CR01	Standard	Multiple	Individual	All	1 ft	304.8 mm	IP67/IP68 - Dust Tight Waterproof	M12	Female Sockets	Plug	Unshielded	Industrial Environments	Panel Mount	Keyed	Wire Leads	4
MH Connectors FPM12A04I06AF01	Standard	Multiple	Individual	All			IP67/IP68 - Dust Tight Waterproof	M12	Female Sockets	Plug	Unshielded	Industrial Environments	Panel Mount	Keyed	Wire Leads	4
MH Connectors FPM12A05I12DR02	Standard	Multiple	Individual	All	1 ft	304.8 mm	IP67/IP68 - Dust Tight Waterproof	M12	Female Sockets	Plug	Unshielded	Industrial Environments	Panel Mount	Keyed	Wire Leads	5
MH Connectors FPM12A08I06BR03	Standard	Multiple	Individual	All			IP67/IP68 - Dust Tight Waterproof	M12	Female Sockets	Plug	Unshielded	Industrial Environments	Panel Mount	Keyed	Wire Leads	8 positions
MH Connectors FPM12A08I12AF03	Standard	Multiple	Individual	All	1 ft	304.8 mm	IP67/IP68 - Dust Tight Waterproof	M12	Female Sockets	Plug	Unshielded	Industrial Environments	Panel Mount	Keyed	Wire Leads	8 positions
MH Connectors FPM12A04I06CF01	Standard	Multiple	Individual	All			IP67/IP68 - Dust Tight Waterproof	M12	Female Sockets	Plug	Unshielded	Industrial Environments	Panel Mount	Keyed	Wire Leads	4
MH Connectors FPM12A04I12CR02	Standard	Multiple	Individual	All	1 ft	304.8 mm	IP67/IP68 - Dust Tight Waterproof	M12	Female Sockets	Plug	Unshielded	Industrial Environments	Panel Mount	Keyed	Wire Leads	4
MH Connectors FPM12A04I12BR02	Standard	Multiple	Individual	All	1 ft	304.8 mm	IP67/IP68 - Dust Tight Waterproof	M12	Female Sockets	Plug	Unshielded	Industrial Environments	Panel Mount	Keyed	Wire Leads	4
MH Connectors FPM12A04I12AF01	Standard	Multiple	Individual	All	1 ft	304.8 mm	IP67/IP68 - Dust Tight Waterproof	M12	Female Sockets	Plug	Unshielded	Industrial Environments	Panel Mount	Keyed	Wire Leads	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 16.75
Newark	Each	1	$ 24.40
		5	$ 20.52
		10	$ 16.63

Description

General part information

FPM12A0 Series

Cable Assembly 1.00' (304.80mm)
