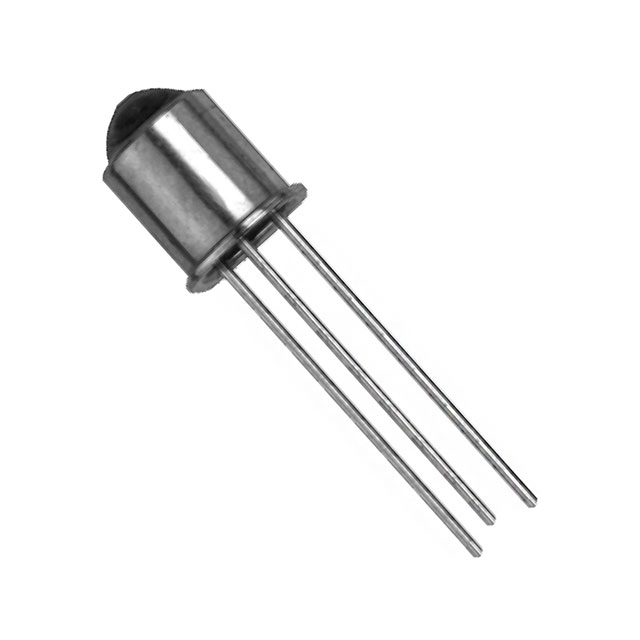

OP804SL

Active

TT Electronics/Optek Technology

SENSOR PHOTO 890NM TOP TO206AA

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR PHOTO 890NM TOP TO206AA

Technical Specifications

Parameters and characteristics for this part

Specification	OP804SL

Current - Collector (Ic) (Max) [Max]	50 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Orientation	Top View
Package / Case	TO-18-3 Metal Can, TO-206AA
Power - Max [Max]	250 mW
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	890 nm

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector (Ic) (Max) [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Dark (Id) (Max) [Max]	Viewing Angle	Package / Case	Power - Max [Max]	Wavelength	Orientation
TT Electronics/Optek Technology OP804TX	125 °C	-65 ░C	50 mA	Through Hole	30 V	100 nA	24 °	TO-18-3 Metal Can TO-206AA	250 mW	890 nm	Top View
TT Electronics/Optek Technology OP804SL	125 °C	-65 ░C	50 mA	Through Hole	30 V	100 nA		TO-18-3 Metal Can TO-206AA	250 mW	890 nm	Top View

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 890nm Top View TO-206AA, TO-18-3 Metal Can
