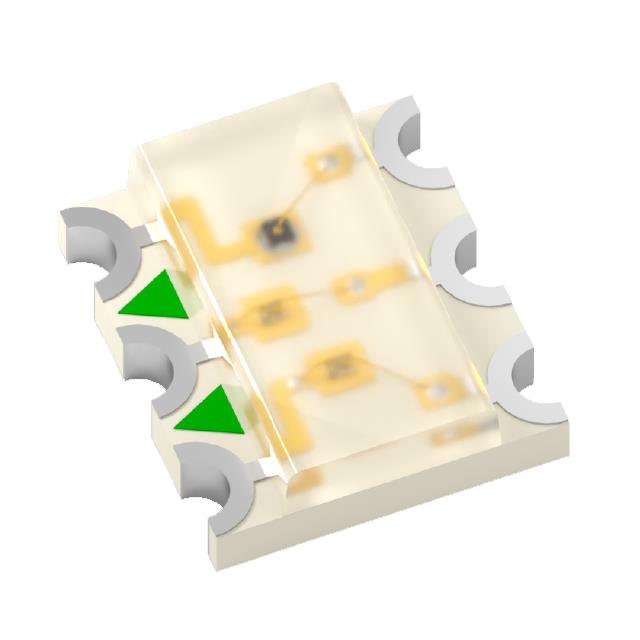

APF3236SEEZGKQBKC

Active

Kingbright

LED RGB 621NM 525NM 465NM 6SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APF3236SEEZGKQBKC

Active

Kingbright

LED RGB 621NM 525NM 465NM 6SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APF3236SEEZGKQBKC

Color	Red, Green, Blue
Configuration	Independent
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	1.3 mm
Lens Color	Colorless
Lens Size [x]	3.6 mm
Lens Size [y]	1.9 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating [custom]	140 mcd
Millicandela Rating [custom]	330 mcd
Millicandela Rating [custom]	70 mcd
Mounting Type	Surface Mount
Package / Case	6-SMD, No Lead
Size / Dimension [x]	3.6 mm
Size / Dimension [y]	3.2 mm
Supplier Device Package	6-SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.3 V, 3.3 V, 2 V
Wavelength - Dominant	465 nm, 621 nm, 525 nm
Wavelength - Peak [custom]	630 nm
Wavelength - Peak [custom]	460 nm
Wavelength - Peak [custom]	515 nm

APF3236 Series

Part	Lens Color	Supplier Device Package	Lens Style	Color	Lens Size [x]	Lens Size [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Package / Case	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Configuration	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Height (Max) [Max] [z]	Wavelength - Dominant	Lens Transparency	Viewing Angle	Wavelength - Peak	Voltage - Forward (Vf) (Typ)
Kingbright APF3236LSEEZGKQBKC	Colorless	6-SMD	Rectangle with Flat Top	Blue Green Red	3.6 mm	1.9 mm	3.6 mm	3.2 mm	Surface Mount	6-SMD No Lead	630 nm	460 nm	515 nm	2.1 V	3.1 V	3.1 V	Independent	10 mcd	15 mcd	60 mcd	2 mA	2 mA	2 mA	1.3 mm	465 nm 525 nm 621 nm	Clear	120 °
Kingbright APF3236SEKJ3ZGKQBKC	Colorless	6-SMD	Rectangle with Flat Top	Blue Green Red	3.6 mm	1.9 mm	3.2 mm	3.6 mm	Surface Mount	6-SMD No Lead				2.2 V	3.3 V	3.3 V	Independent	70 mcd	350 mcd	320 mcd	20 mA	20 mA	20 mA	1.1 mm	465 nm 525 nm 625 nm	Clear	120 °	460 nm 515 nm 640 nm
Kingbright APF3236SEEZGKQBKC	Colorless	6-SMD	Rectangle with Flat Top	Blue Green Red	3.6 mm	1.9 mm	3.6 mm	3.2 mm	Surface Mount	6-SMD No Lead	630 nm	460 nm	515 nm				Independent	70 mcd	140 mcd	330 mcd	20 mA	20 mA	20 mA	1.3 mm	465 nm 525 nm 621 nm	Clear	120 °		2 V 3.3 V 3.3 V
Kingbright APF3236LSEKJ3ZGKQBKC	Colorless	6-SMD	Rectangle with Flat Top	Blue Green Red	3.6 mm	1.9 mm	3.2 mm	3.6 mm	Surface Mount	6-SMD No Lead				1.8 V	2.7 V	2.7 V	Independent	10 mcd	40 mcd	60 mcd	2 mA	2 mA	2 mA	1.1 mm	465 nm 525 nm 625 nm	Clear	120 °	460 nm 515 nm 640 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.88
		10	$ 0.57
		100	$ 0.37
	Digi-Reel®	1	$ 0.88
		10	$ 0.57
		100	$ 0.37
	Tape & Reel (TR)	1000	$ 0.30
		2000	$ 0.28
		5000	$ 0.27
		10000	$ 0.26
		25000	$ 0.26

Description

General part information

APF3236 Series

Red, Green, Blue (RGB) 621nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 6-SMD, No Lead
