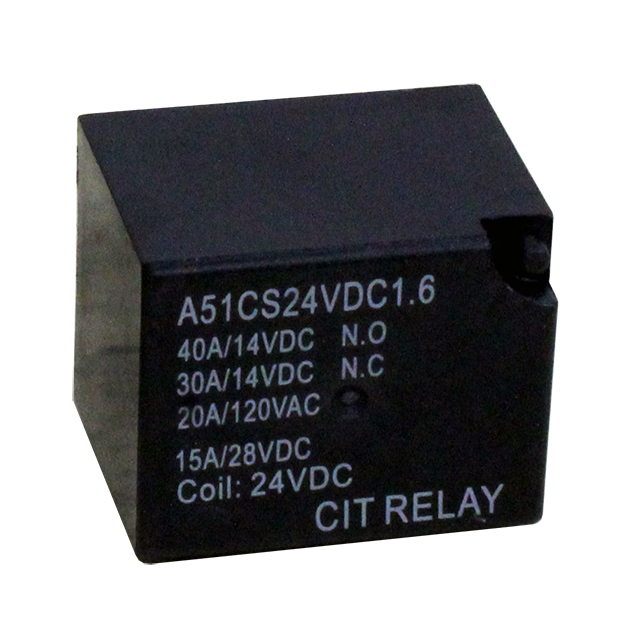

A51CS24VDC1.6
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 40A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A51CS24VDC1.6
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 40A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A51CS24VDC1.6 |
|---|---|
| Coil Current | 66.7 mA |
| Coil Power | 1.6 W |
| Coil Resistance | 360 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 40 A |
| Features | Sealed - Fully |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 5 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 3 ms |
| Switching Voltage | 75 VDC, 380 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.09 | |
| 10 | $ 1.86 | |||
| 25 | $ 1.78 | |||
| 40 | $ 1.74 | |||
| 80 | $ 1.68 | |||
| 240 | $ 1.59 | |||
| 440 | $ 1.54 | |||
| 960 | $ 1.48 | |||
| 4920 | $ 1.36 | |||
Description
General part information
A51CS Series
RELAY AUTOMOTIVE SPDT 40A 24V
