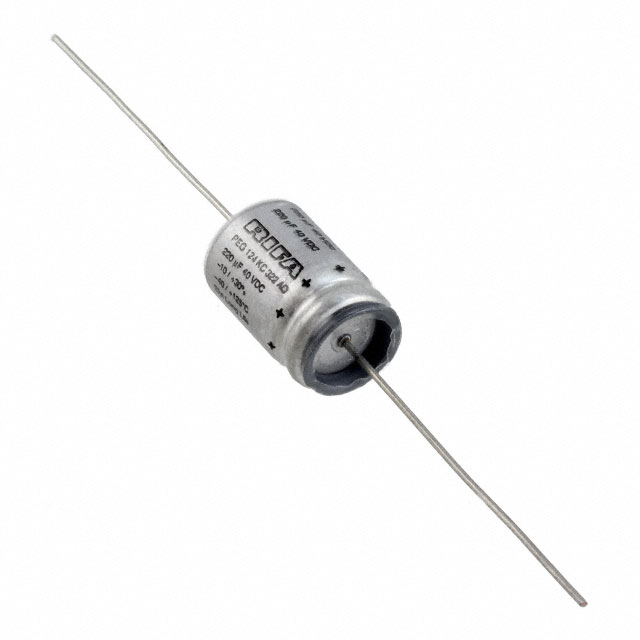

PEG124KC322AQL1

Unknown

KEMET

CAP ALUM 220UF 40V AXIAL TH

Search across all available documentation for this part.

Unknown

KEMET

CAP ALUM 220UF 40V AXIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	PEG124KC322AQL1

Applications	General Purpose
Capacitance	220 µF
Lifetime @ Temp.	2500 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Can, Axial
Polarization	Polar
Ripple Current @ Low Frequency	452 mA
Size / Dimension [diameter]	0.512 in
Size / Dimension [diameter]	13 mm
Size / Dimension [x]	0.787 in
Size / Dimension [x]	20 mm
Tolerance [Max]	30 %
Tolerance [Min]	-10 %
Voltage - Rated	40 V

Part	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Applications	Tolerance [Min]	Tolerance [Max]	Package / Case	Capacitance	Lifetime @ Temp.	Polarization	Mounting Type	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)
KEMET PEG124KC322AQL1	0.787 in	0.512 in	13 mm	20 mm	40 V	125 °C	-40 °C	452 mA	General Purpose	-10 %	30 %	Axial Can	220 µF	2500 Hrs	Polar	Through Hole
KEMET PEG124KA2330QT1	0.787 in	0.394 in	10 mm	20 mm	40 V	125 °C	-40 °C	153 mA	General Purpose	-10 %	30 %	Axial Can	33 ÁF	2000 Hrs	Polar	Through Hole	1.1 A	2.9 Ohm
KEMET PEG124KB2680QT1	1.142 inches	0.394 in	10 mm	29 mm	40 V	125 °C	-40 °C	221 mA	General Purpose	-10 %	30 %	Axial Can	68 µF	2000 Hrs	Polar	Through Hole	1.5 A	1.4 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 µF 40 V Aluminum Electrolytic Capacitors Axial, Can 440mOhm @ 100Hz 2500 Hrs @ 125°C
