9055-1113-000

Active

Radiall USA, Inc.

SMA / STRAIGHT PLUG RECEPTACLE M

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT PLUG RECEPTACLE M

Technical Specifications

Parameters and characteristics for this part

Specification	9055-1113-000

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Features	Mating Cycles	Center Contact Material	Mounting Feature	Housing Color	Shield Termination	Mounting Type	Impedance	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Number of Ports	Dielectric Material	Body Material	Contact Termination	Connector Type	Connector Style	Center Contact Plating
Radiall USA, Inc. 9055-1113-000	Extended Insulation	500	Beryllium Copper	Flange	Gold	Solder	Panel Mount Through Hole	50 Ohms	Gold	-65 ░C	165 °C	18 GHz	1	Polytetrafluoroethylene (PTFE)	Stainless Steel	Solder	Male Pin Plug	SMA	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 56.61

General part information

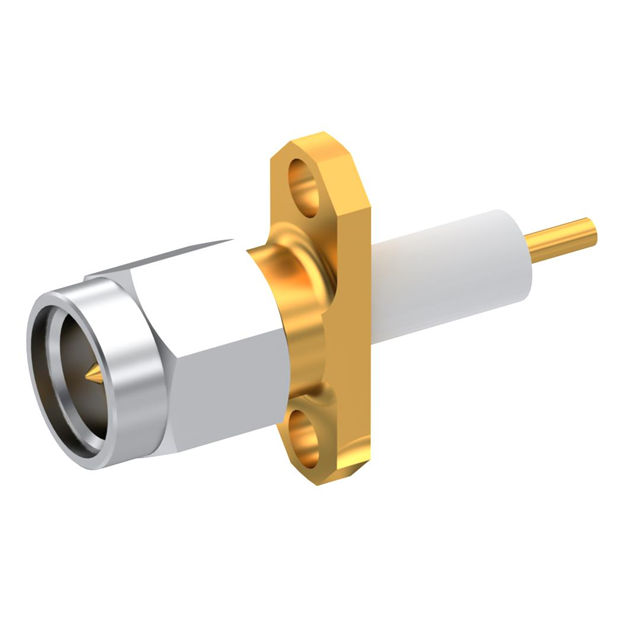

SMA Connector Plug, Male Pin 50 Ohms Panel Mount, Through Hole Solder
